L.E. Wilson Bushing Type Full Length Sizing Die 7Mm Rem Mag$116.16
Loading...
Loading...
Loading...
Availability: In Stock

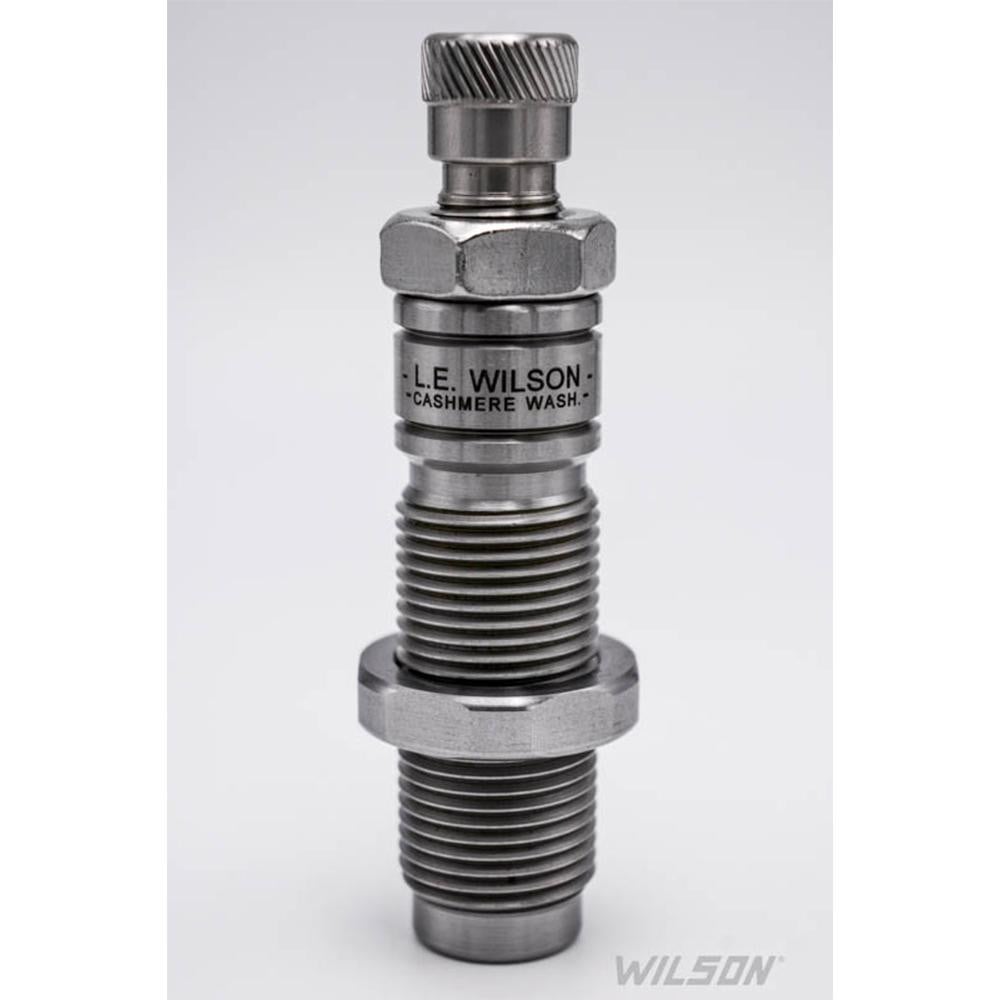

The L.E. Wilson Bushing Type Full Length Sizing Die for .223 Rem is built for precision reloaders who want control over neck tension while maintaining consistent case dimensions for maximum accuracy. This full length sizing die lets you customize how much you resize the case neck—a technique serious shooters rely on to improve consistency and tighter groups. The die sizes the shoulder and body while leaving the bottom 3/16" of the case neck unsized, a practice many precision reloaders prefer over sizing the entire neck.
Built from hardened steel to L.E. Wilson specifications—harder than a Grade 8 bolt—this die is made for durability and long-term accuracy. The adjustable depth decapping rod and included extra decapping punch give you control over primer removal, and the use of stainless parts ensures a long-lasting finish. The die is compatible with standard 7/8"-inch reloading presses, making it a straightforward addition to most reloading benches.
L.E. Wilson bushing-type dies do not include an expander, allowing you to match your neck bushing precisely to your loaded round diameter. Neck bushings are sold separately; L.E. Wilson neck bushings are the recommended choice, though Redding bushings will also fit. This modular approach means you can dial in your exact neck tension and achieve the consistency that separates good handloads from great ones.
| Product Type | Bushing Type Full Length Sizing Die |
| Cartridge | .223 Rem |
| Press Compatibility | Standard 7/8" reloading press |
| Neck Sizing | Leaves 3/16" at bottom of case neck unsized |
| Material | Hardened steel (L.E. Wilson specification) |
| Decapping | Adjustable depth rod with extra punch |
| Lock Nut Dimensions | 0.225" inside to outside edge; 0.270" height; 1.250" total width OD |
| Expander | Not included |
| Bushings | Sold separately (L.E. Wilson or Redding compatible) |
Yes, the L.E. Wilson Bushing Type die fits any standard 7/8"-inch reloading press, which covers the vast majority of single-stage and progressive press models used by handloaders.
Yes, neck bushings are sold separately. L.E. Wilson neck bushings are the recommended choice for this die, but Redding bushings will also fit if you prefer them.
The die comes with an adjustable depth decapping rod and an extra decapping punch, plus the L.E. Wilson manufactured lock nut. Neck bushings must be purchased separately.
By leaving the bottom 3/16" of the neck unsized, you mimic the approach of dedicated neck sizing dies. Many precision reloaders find this improves accuracy and consistency compared to sizing the full length of the neck.
SKU: 167523738 • Width: 1.75in • Height: 1.75in • Depth: 5.75in • Weight: 0.6oz
