EGW194196365
Egw Browning X-Bolt Short Action 0 Moa Aluminum$80.99
Availability: In Stock

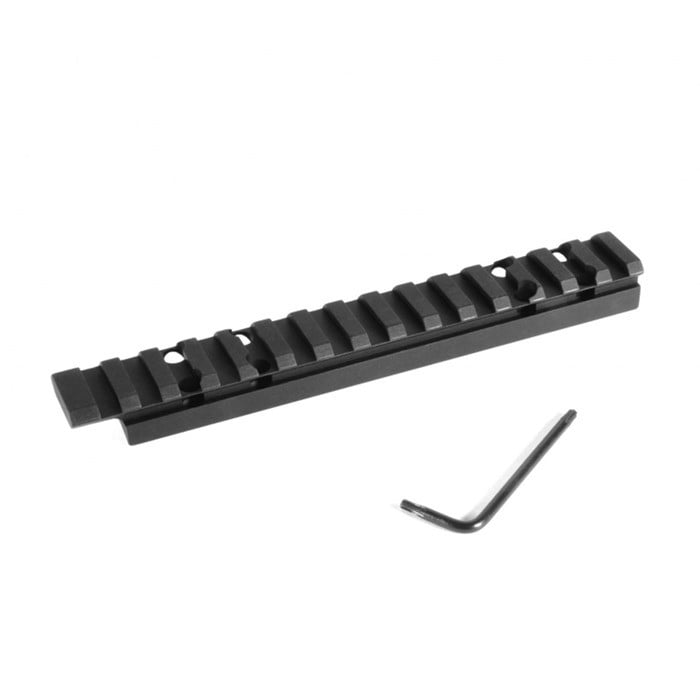

The EGW Browning A-Bolt Short Action 0 MOA scope base is a one-piece Picatinny rail that mounts directly to your A-Bolt receiver using the factory scope mount holes—no drilling or tapping required. Built from 6061 T6 extruded aluminum and machined to MIL-STD 1913 specifications (±.002"), this base gives you the flexibility to run any modern Picatinny or Weaver scope ring combination, making it simple to dial in your preferred eye relief or swap optics on the fly.
Whether you're setting up a hunting rifle or a tactical build, this one-piece base eliminates the slack and flex that can creep into two-piece mounts. The Tactical version includes a milled center channel to shed weight without sacrificing rigidity. EGW supplies everything you need to secure it properly: socket head Torx screws, a wrench, and clear guidance to torque to 20 inch-lbs with blue loctite, so your zero stays put through recoil and rough handling.
The full-width Picatinny slots are gauged to factory spec, meaning any quality ring will lock down solid. If you already own Browning A-Bolt rifles or are building one and want a rock-solid, no-compromise mounting solution, this base delivers the precision and versatility that lets you focus on the glass and the shot.
| Brand | EGW |
| Rifle Compatibility | Browning A-Bolt Short Action |
| Mount Type | One-Piece Picatinny Rail Base |
| Material | 6061 T6 Extruded Aluminum |
| Rail Standard | MIL-STD 1913 Picatinny |
| Ring Compatibility | Picatinny or Weaver Rings |
| MOA Offset | 0 MOA |
| Torque Specification | 20 inch-lbs (blue loctite recommended) |
| Included Accessories | Socket Head Torx Screws, Wrench |
This base is designed for Browning A-Bolt Short Action receivers and mounts directly to the factory scope mount holes, so no drilling or tapping is needed. Verify your rifle is a Short Action variant before ordering.
Any Picatinny or Weaver scope rings will work. The Picatinny slots are gauged to MIL-STD 1913 specification, so you have full flexibility in ring choice and can adjust eye relief to suit your optic and shooting position.
No. The base mounts using the existing factory holes on your A-Bolt receiver, so installation is straightforward. EGW includes the necessary Torx screws and wrench. The company recommends torquing to 20 inch-lbs and applying a small drop of blue loctite to ensure the base stays put.
The 0 MOA designation indicates the base sits parallel (zero angle) to the receiver. This is a standard, flat mounting configuration; your scope's internal adjustment turrets will handle all elevation and windage corrections.
SKU: 197556228 • Weight: 0.1oz
Availability: In Stock
The EGW Browning A-Bolt Short Action 0 MOA scope base is a one-piece Picatinny rail that mounts directly to your A-Bolt receiver using the factory scope mount holes—no drilling or tapping required. Built from 6061 T6 extruded aluminum and machined to MIL-STD 1913 specifications (±.002"), this base gives you the flexibility to run any modern Picatinny or Weaver scope ring combination, making it simple to dial in your preferred eye relief or swap optics on the fly.
Whether you're setting up a hunting rifle or a tactical build, this one-piece base eliminates the slack and flex that can creep into two-piece mounts. The Tactical version includes a milled center channel to shed weight without sacrificing rigidity. EGW supplies everything you need to secure it properly: socket head Torx screws, a wrench, and clear guidance to torque to 20 inch-lbs with blue loctite, so your zero stays put through recoil and rough handling.
The full-width Picatinny slots are gauged to factory spec, meaning any quality ring will lock down solid. If you already own Browning A-Bolt rifles or are building one and want a rock-solid, no-compromise mounting solution, this base delivers the precision and versatility that lets you focus on the glass and the shot.
| Brand | EGW |
| Rifle Compatibility | Browning A-Bolt Short Action |
| Mount Type | One-Piece Picatinny Rail Base |
| Material | 6061 T6 Extruded Aluminum |
| Rail Standard | MIL-STD 1913 Picatinny |
| Ring Compatibility | Picatinny or Weaver Rings |
| MOA Offset | 0 MOA |
| Torque Specification | 20 inch-lbs (blue loctite recommended) |
| Included Accessories | Socket Head Torx Screws, Wrench |
This base is designed for Browning A-Bolt Short Action receivers and mounts directly to the factory scope mount holes, so no drilling or tapping is needed. Verify your rifle is a Short Action variant before ordering.
Any Picatinny or Weaver scope rings will work. The Picatinny slots are gauged to MIL-STD 1913 specification, so you have full flexibility in ring choice and can adjust eye relief to suit your optic and shooting position.
No. The base mounts using the existing factory holes on your A-Bolt receiver, so installation is straightforward. EGW includes the necessary Torx screws and wrench. The company recommends torquing to 20 inch-lbs and applying a small drop of blue loctite to ensure the base stays put.
The 0 MOA designation indicates the base sits parallel (zero angle) to the receiver. This is a standard, flat mounting configuration; your scope's internal adjustment turrets will handle all elevation and windage corrections.
SKU: 197556228 • Weight: 0.1oz
