Area 419167524134

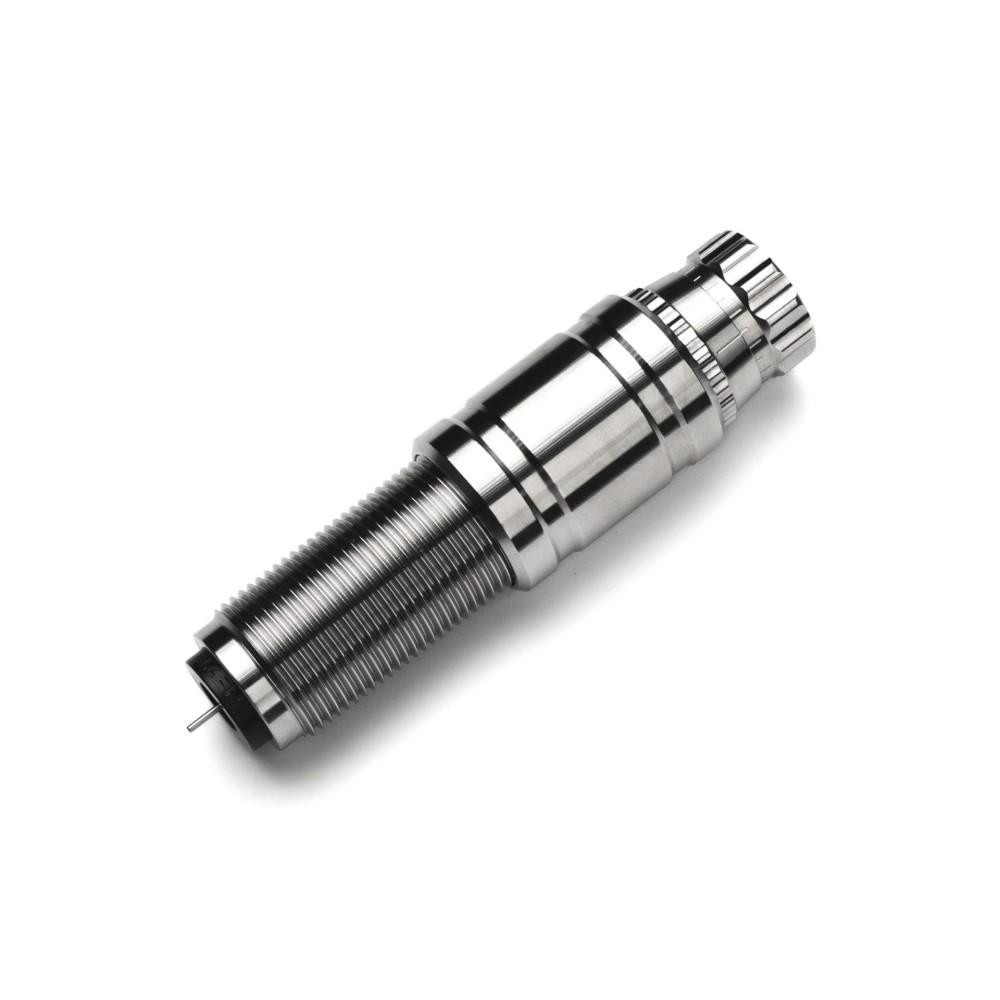

Area 419 Zero M-Series Sizing Dies 7Mm Prc W/ Shell Holder$500.00
Availability: In Stock
The Area 419 Zero M-Series Sizing Die for 6.5 PRC is a reloading die engineered specifically for shooters who demand match-grade accuracy without unnecessary complexity. Built as part of Area 419's ecosystem approach to reloading—where the press, die, brass, and rifle work in concert—this 1-1/4" die delivers precise sizing control that fits seamlessly into your ZERO M-Series workflow. Whether you're a precision rifle competitor, a long-range hunter fine-tuning handloads, or a dedicated reloader stepping up your ammunition quality, this sizing die handles the critical first step of the reloading process with the consistency and repeatability that separates good ammo from great ammo.
What sets the M-Series apart is its attention to real-world reloading challenges. The micrometer-adjustable headspace and shoulder bump system gives you precise control without guesswork; the reamer is cut to exacting dimensions so your brass sizes true and won't stick in the bolt after the second firing. The precision ground expander mandrel (shipped at .002" neck tension) works cleanly, and the full-length neck-to-extractor sizing ensures concentricity. Spring ejection handles spent primers automatically, and replaceable steel decap pins mean you're not locked into expensive replacements.
Area 419 designed this die around what reloaders actually struggle with—sticky cases, inconsistent sizing, trial-and-error headspace adjustments, and poor integration with their press. The result is a die that works as hard as you do, whether you're chasing sub-minute-of-angle groups or simply loading reliable, safe ammunition. Made entirely in America and backed by Area 419's engineering pedigree, the M-Series Sizing Die proves that precision and usability don't have to be at odds.
| Caliber | 6.5 PRC |
| Die Type | Sizing Die |
| Mount Thread Size | 1-1/4" |
| Compatibility | Area 419 ZERO Press (Hybrid or 1-1/4" Turret only) |
| Shell Holder | Included; requires Area 419 ZERO M-Series Shell Holder (NOT compatible with standard shellholders) |
| Standard Neck Tension Mandrel | .002" |
| Includes | Die Ring, spare decapping pin, installation/removal tools |
| Country of Origin | USA |
The Area 419 Zero M-Series Sizing Die requires a Hybrid or 1-1/4" Turret on your ZERO press. It cannot be used with a 7/8" turret or other 7/8" press. Verify your turret size before ordering.
This die ships with a shell holder, but it requires the larger-diameter Area 419 ZERO M-Series Shell Holder and is NOT compatible with standard reloading shellholders. If you don't already own a ZERO M-Series shell holder, you'll need to acquire one to use this die.
Yes. The die features micrometer-adjustable headspace and shoulder bump control, allowing you to fine-tune sizing to your brass and rifle. The precision ground expander mandrels are replaceable, so you can swap to different neck tensions using the optional Area 419 Mandrel Kit.
The spring ejection automatically ejects spent primers without manual handling, speeding your workflow. The replaceable steel decap pins mean you replace only the pin if it wears, rather than buying an entire new die—a genuine cost saving for high-volume reloaders.
SKU: 167525051 • Width: 6in • Height: 3in • Depth: 10in • Weight: 3.27oz
