Availability: In Stock

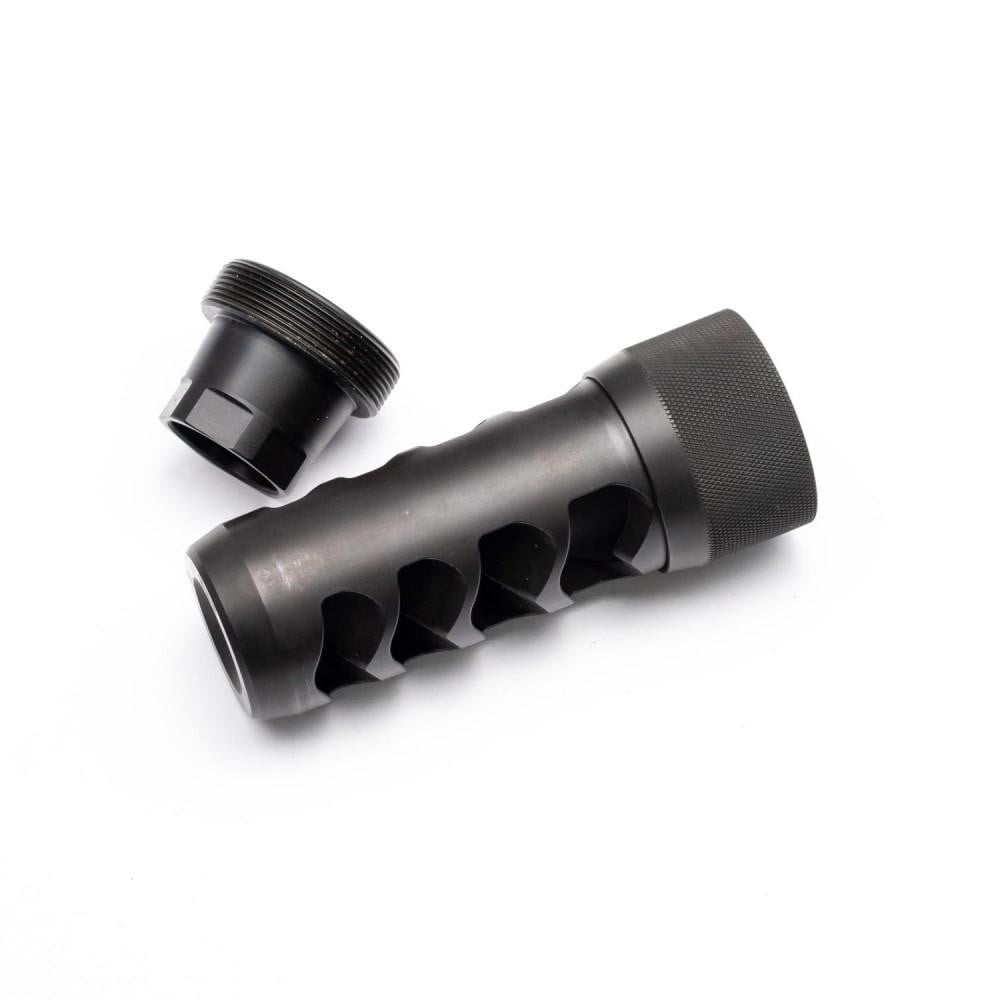

The Area 419 Sidewinder Magnum Self Timing Muzzle Brake is a purpose-built recoil reduction solution for 357 caliber rifles, engineered to tame muzzle rise and recoil impulse without requiring guesswork during installation. Unlike traditional brakes that can shift orientation as you tighten them down, the Sidewinder employs Area 419's proprietary self-timing design—rotate it to level, push it into place, and the taper locks the brake exactly where you positioned it. That means no more chasing zero after removal and reinstallation, a genuine advantage if you need to swap suppressors, clean the brake, or troubleshoot your setup in the field.
The Sidewinder's design borrows from Area 419's acclaimed Hellfire brake platform but adds a larger diameter body and an additional port for enhanced recoil control. Rearward-facing ports manage muzzle rise through a progressive port design that concentrates the largest opening closest to the muzzle, where it does the most work, then gradually decreases in size down the brake body. This strategy keeps overall length reasonable—just 3.35 inches—while maximizing efficiency. The face is engraved with the caliber and a horizontal reference line to confirm correct orientation and leveling before you lock it down.
Built from heat-treated 17-4PH stainless steel and finished in black nitride, the Sidewinder is CNC-machined in Ohio and fully American-made. Installation requires only a 13/16-inch wrench to torque the included universal adapter onto your barrel; no specialized tools needed to time the brake itself—just hand-tighten the simple knurled collar. The complete package—brake plus adapter—weighs 7.5 ounces and accepts a 5/8-24 thread pitch.
| Caliber | 357 |
| Thread Pitch | 5/8-24 |
| Material | Heat-treated 17-4PH stainless steel |
| Finish | Black nitride |
| Brake OD | 1.125 inches |
| Collar OD | 1.275 inches |
| Length | 3.35 inches |
| Barrel Extension | Approximately 2.75 inches |
| Weight (Brake + Adapter) | 7.5 ounces |
| Origin | Made in USA |
The brake itself times by hand—simply rotate it to level and push it into the adapter until you feel it lock onto the taper. You need only a 13/16-inch wrench to torque the universal adapter onto your barrel; the simple knurled collar tightens by hand alone.
No. The self-timing design and taper lock ensure excellent return to zero, so you can remove the brake and reinstall it without requiring a zero adjustment.
The Sidewinder package includes the brake, a universal adapter that threads onto your barrel, and the knurled locking collar.
The brake adds approximately 2.75 inches to your barrel length. The brake itself is 3.35 inches long with a 1.125-inch outer diameter.
SKU: 167523237 • Width: 3.4in • Height: 1.8in • Depth: 5.6in • Weight: 5.96oz
