$195.00
Availability: In Stock

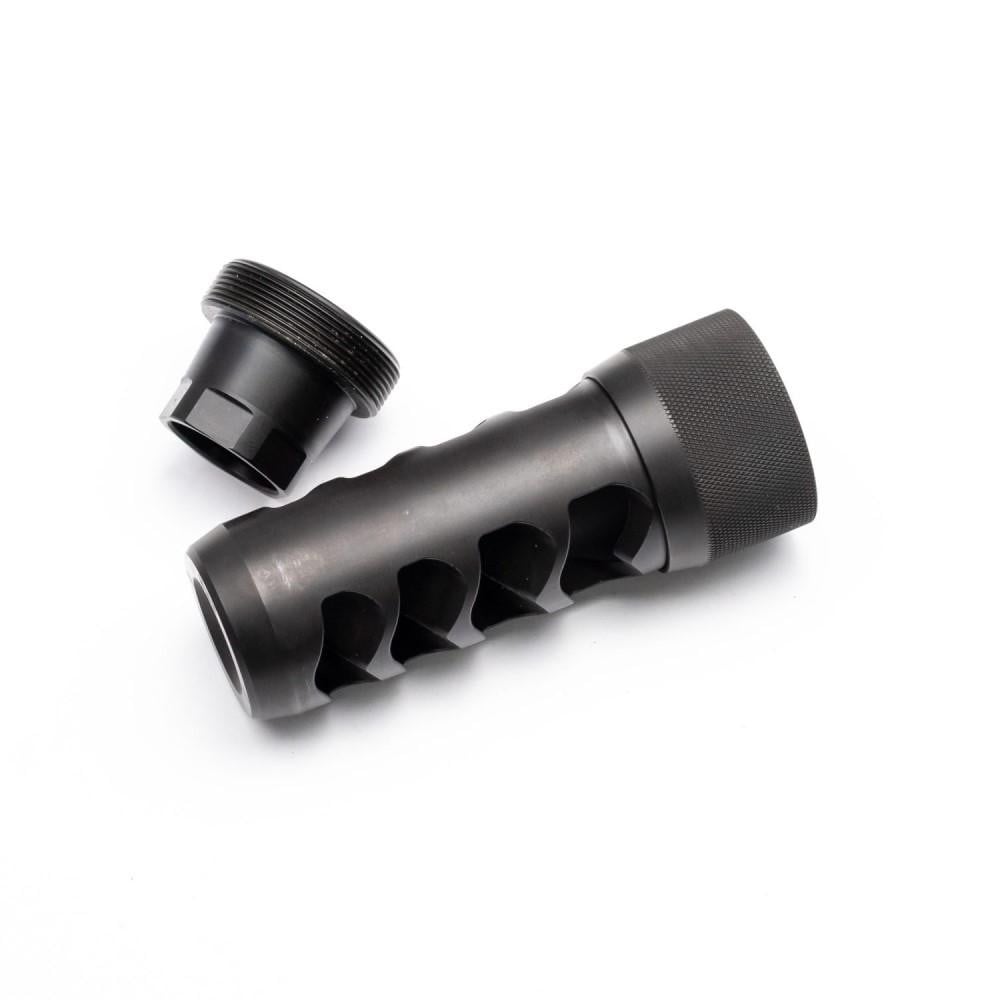

The Area 419 Sidewinder Mag is a self-timing muzzle brake for 30-caliber rifles designed to eliminate the guesswork and frustration of brake alignment. Unlike traditional brakes that rotate as you tighten them, the Sidewinder's innovative self-timing system locks into place once you push it home on the included universal adapter — no more trial-and-error, no more starting over when the ports end up pointing the wrong direction. Hand-tighten the knurled collar and you're done. It's the kind of straightforward engineering that makes you wonder why more brake makers don't do it this way.
The brake itself uses rearward-facing ports arranged in a proprietary progressive design where each port decreases slightly in size moving back from the muzzle. This keeps overall length efficient without sacrificing recoil control. The Sidewinder's larger diameter and additional port compared to Area 419's popular HELLFIRE model means noticeably better recoil reduction and muzzle control without relying on top porting. The brake face is engraved with caliber markings and a horizontal line to ensure you're installing it level and oriented correctly.
Built from heat-treated 17-4 PH stainless steel and finished in durable black nitride, this is a U.S.-made brake manufactured on CNC equipment in Northwest Ohio. The included universal adapter threads onto your barrel with a 13/16″ wrench and stays permanently mounted — only the brake itself comes off if you ever need to remove it. Return to zero is excellent, so you won't need to re-zero after reinstalling. Suppressor mounts compatible with this brake platform are in development.
| Caliber | 30 Cal |
| Thread Pattern | 5/8-24 |
| Finish | Black Nitride |
| Material | Heat-treated 17-4 PH Stainless Steel |
| Brake OD | 1.125″ |
| Collar OD | 1.275″ |
| Brake Length | 3.35″ |
| Barrel Length Addition | Approximately 2.75″ |
| Weight (Brake + Adapter) | 7.5 oz |
| Wrench Size for Adapter Installation | 13/16″ |
| Country of Manufacture | USA |
The Sidewinder uses a tapered locking system. After threading the brake onto the universal adapter until nearly snug, you rotate the brake until level, then push it firmly into the adapter where it locks onto the taper. Once locked, the brake will not rotate as you hand-tighten the collar. The brake face is engraved with a caliber marking and horizontal line to help you achieve correct orientation and level alignment before locking.
No. The Sidewinder has excellent return to zero, meaning you can remove and reinstall the brake without requiring a zero change.
The Sidewinder comes with the brake itself, a universal adapter that threads onto your barrel, and a knurled collar for hand-tightening. You'll need a 13/16″ wrench only to initially install the adapter on your barrel; after that, installation and removal of the brake itself requires no tools.
Area 419's HELLFIRE model, on which the Sidewinder design is based, was independently tested and showed 52% recoil reduction on a 6.5 Creedmoor. The Sidewinder features one additional port and a larger diameter, so you can expect a notable increase in recoil control compared to the HELLFIRE.
SKU: 167525038 • Width: 3.45in • Height: 1.75in • Depth: 5.7in • Weight: 0.6oz
