$195.00
Availability: In Stock

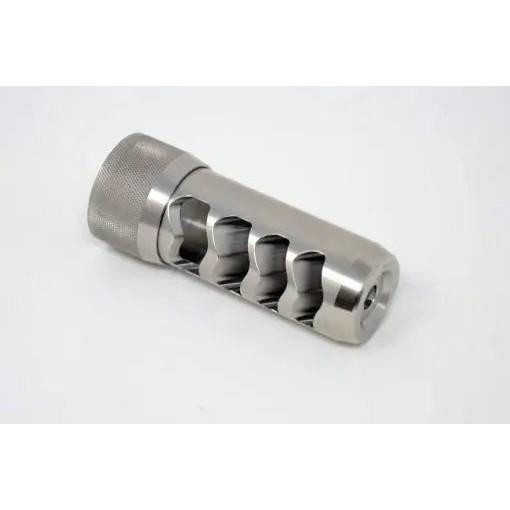

The Area 419 Sidewinder Mag Self Timing muzzle brake for 6.5mm is engineered for shooters who want serious recoil reduction without wrestling a brake into perfect alignment. Built on a self-timing taper system, the Sidewinder locks itself into correct orientation as you seat it—no guessing, no trial-and-error. Just torque down the simple knurled collar by hand, and you're done. It's the kind of straightforward engineering that makes range time or hunting day less about fighting your gear and more about shooting.
The brake itself uses Area 419's proprietary rearward-facing port design with progressive sizing: larger ports closer to the muzzle, progressively smaller toward the back. This keeps the overall length compact at 3.35 inches while maximizing recoil control across the full length of the brake. The face is engraved with caliber marking and a horizontal leveling line, taking the guesswork out of getting the ports perfectly vertical. The design controls muzzle rise effectively without relying on top porting, which means you'll get cleaner sight picture recovery on follow-up shots.
Constructed from heat-treated 17-4PH stainless steel and finished in durable black nitride, the Sidewinder is built to handle hard use. The brake threads onto a universal adapter that installs permanently on your barrel (using a 13/16-inch wrench)—the brake itself attaches and detaches repeatedly with excellent return-to-zero, so you can swap it for a suppressor mount or remove it entirely without losing your zero. Made in the USA on CNC equipment in Northwest Ohio.
| Caliber | 6.5mm |
| Thread Size | 5/8-24 |
| Material | Heat-treated 17-4PH stainless steel |
| Finish | Black nitride |
| Brake O.D. | 1.125 inches |
| Collar O.D. | 1.275 inches |
| Length | 3.35 inches |
| Barrel Extension | Approximately 2.75 inches |
| Weight (Brake + Adapter) | 7.5 ounces |
Torque the included universal adapter onto your barrel using a 13/16-inch wrench—this adapter stays permanently in place. Then thread the brake and collar assembly hand-tight onto the adapter. Rotate the brake until the ports align level (the horizontal line engraved on the brake face helps with this), then push the brake into the adapter and you'll feel it lock onto the taper. Finish by tightening the collar fully by hand. No special tools needed.
No. The Sidewinder is designed for excellent return-to-zero, so you can remove the brake and reinstall it without requiring a zero change. This makes it easy to swap between the brake and other muzzle devices, or to remove it entirely if needed.
Area 419's HELLFIRE brake (which the Sidewinder is modeled after and improves upon) demonstrated 52% recoil reduction in independent testing on a 6.5 Creedmoor. The Sidewinder features one additional port and a larger overall diameter, so you can expect a notable increase in recoil abatement compared to the HELLFIRE.
Suppressor mounts compatible with the Sidewinder are in development. Contact Area 419 directly for availability and compatibility information.
SKU: 167524132 • Width: 3.4in • Height: 1.8in • Depth: 5.6in • Weight: 0.607oz
