Availability: In Stock
The Area 419 Hellfire self-timing muzzle brake in 6.5mm is built for shooters who want serious recoil reduction without the installation headaches that plague traditional brake designs. This 5/8-24 threaded brake uses a patented self-timing system—no guessing, no trial and error, no permanent alignment mistakes. Thread it on, rotate until it locks onto the taper, hand-tighten the collar, and you're done. It's the kind of engineering that makes you wonder why every brake doesn't work this way.
The Hellfire delivers measurable performance: independent testing showed 52% recoil reduction on a 6.5 Creedmoor platform, with proprietary rear-facing ports and a port design that controls muzzle rise without relying on top porting. The brake's face is engraved with caliber markings and a horizontal line to ensure correct orientation and level installation. Built from heat-treated 17-4PH stainless steel and finished in black nitride, it's manufactured right here in the USA on CNC equipment. The design is robust—1-inch outside diameter on the brake body with a 1.1-inch collar—and adds approximately 2 inches to barrel length and 4.8 ounces to your setup.

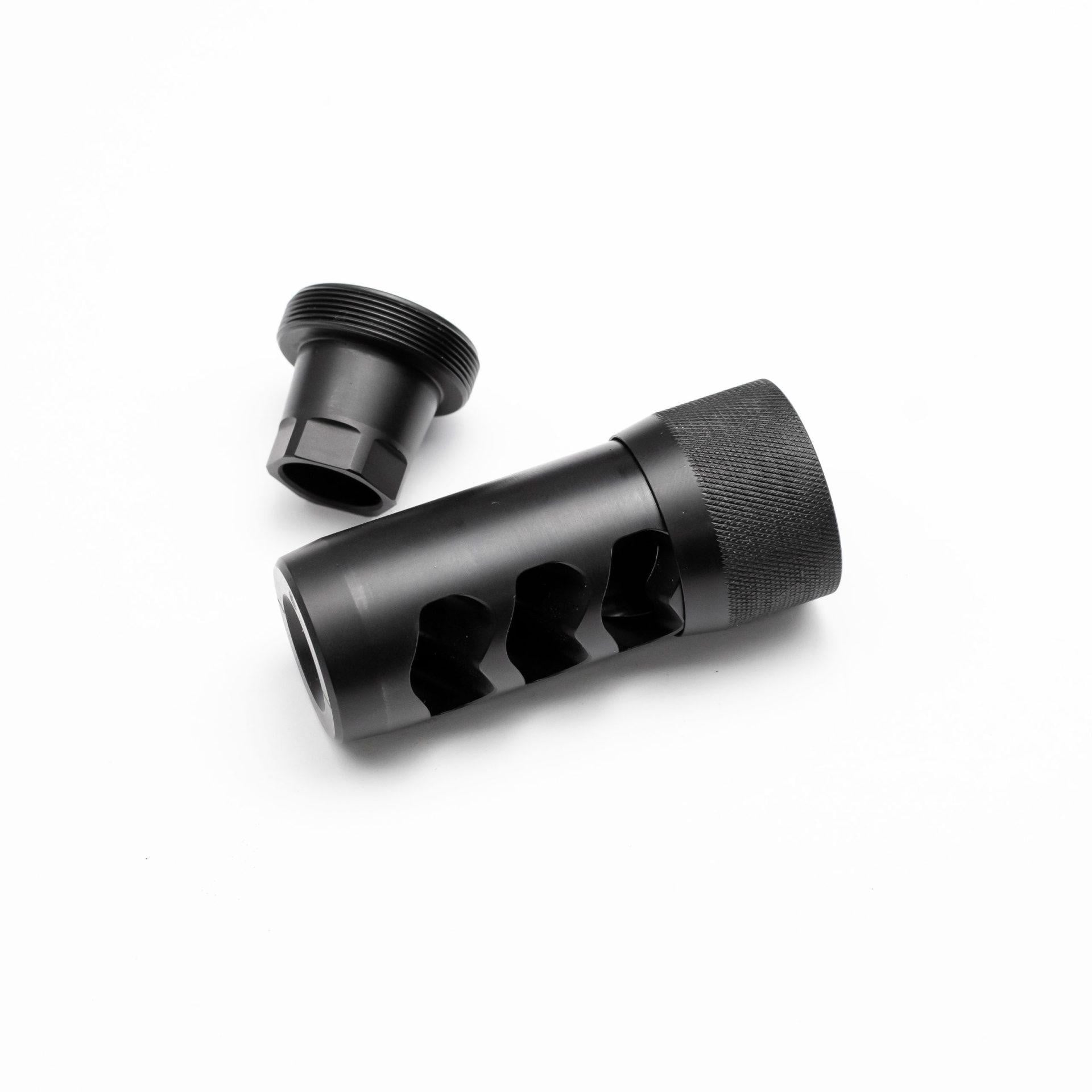

Because the brake uses a detachable universal adapter that stays permanently mounted to your barrel, removal and reinstallation won't shift your zero. Thread the adapter once with a 5/8-inch wrench and you're set; the brake assembly itself requires no tools to time and remove. This is practical engineering for hunters and precision shooters who need reliability and repeatability, whether you're breaking in a new rifle or swapping brakes between barrels.
| Caliber | 6.5mm (suitable for calibers up to .264) |
| Thread Pattern | 5/8-24 |
| Material | Heat-treated 17-4PH stainless steel |
| Finish | Black nitride |
| Brake OD | 1 inch |
| Collar OD | 1.1 inches |
| Length Added to Barrel | Approximately 2 inches from thread shoulder |
| Weight | 4.8 ounces |
| Installation Method | Self-timing (no tools required for brake assembly) |
The 6.5mm brake is designed for any bullet caliber up to and including .264 (6.5mm), including magnum variants up to .257 Magnum.
You'll need only a 5/8-inch wrench (or socket) to install the universal adapter onto your barrel—that's a one-time job. The brake assembly itself times and tightens by hand with the round knurled collar; no additional tools are required to lock it in position.
No. The Hellfire uses a detachable adapter that remains permanently mounted to your barrel. Because the brake times onto that fixed adapter, removal and reinstallation of the brake assembly alone will maintain your established zero.
The Hellfire brake assembly adds approximately 2 inches to your barrel's overall length, measured from the thread shoulder.
SKU: 167522342 • Width: 3.625in • Height: 1.75in • Depth: 9.25in • Weight: 0.37oz
