$170.00
Availability: In Stock
The Area 419 Hellfire Self Timing Muzzle Brake in 338 is purpose-built for shooters running .338-caliber magnums who want meaningful recoil reduction without the installation headaches that plague traditional brakes. This is a self-timing brake designed for 338 Win Mag, 338 Lapua Mag, 338 Norma Mag, 338 Edge, and other .338 cartridges—calibers that demand serious recoil management on the range or in the field. The Hellfire uses rearward-facing ports and a proprietary port geometry to control muzzle rise without relying on top porting, delivering measured 52% recoil reduction in independent testing.

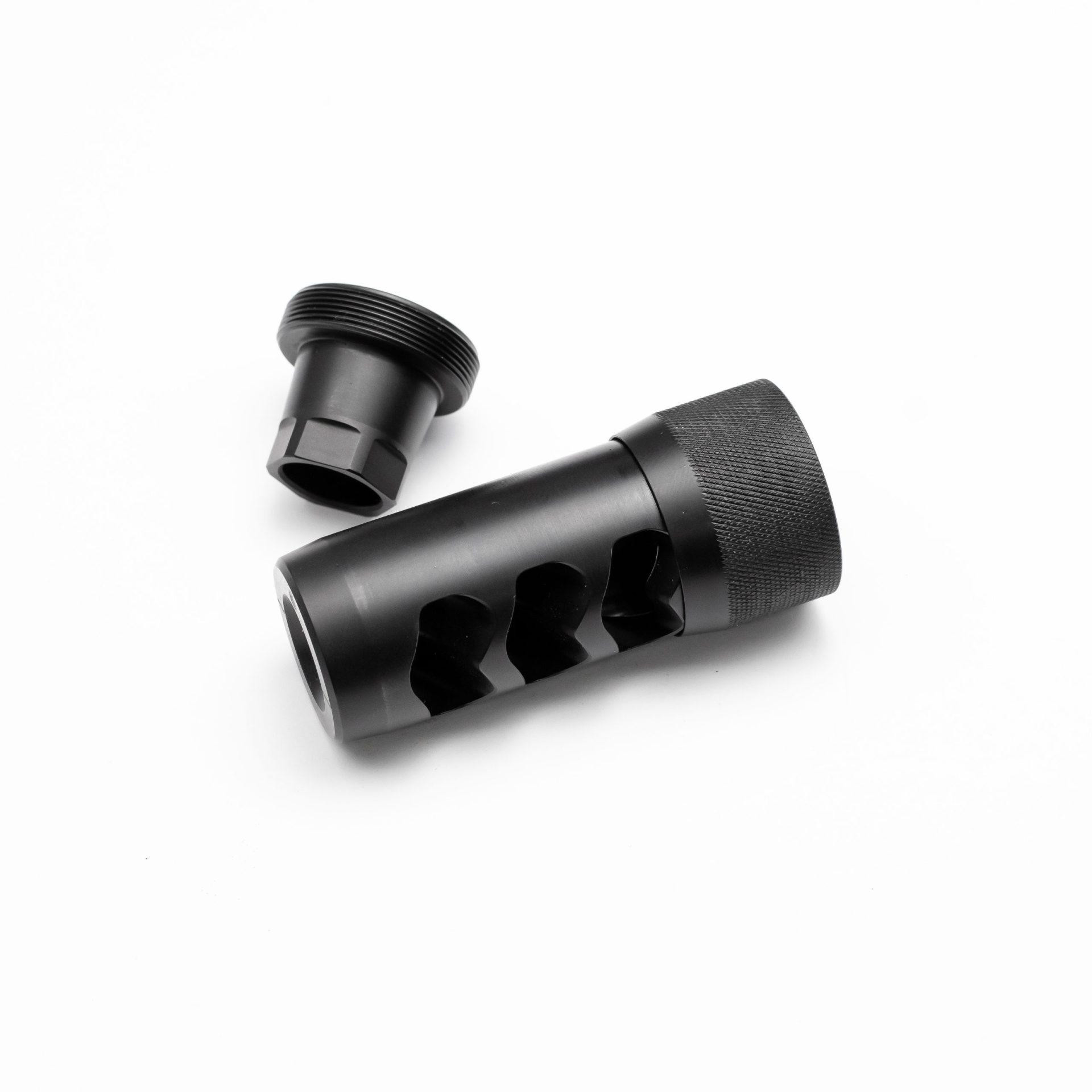

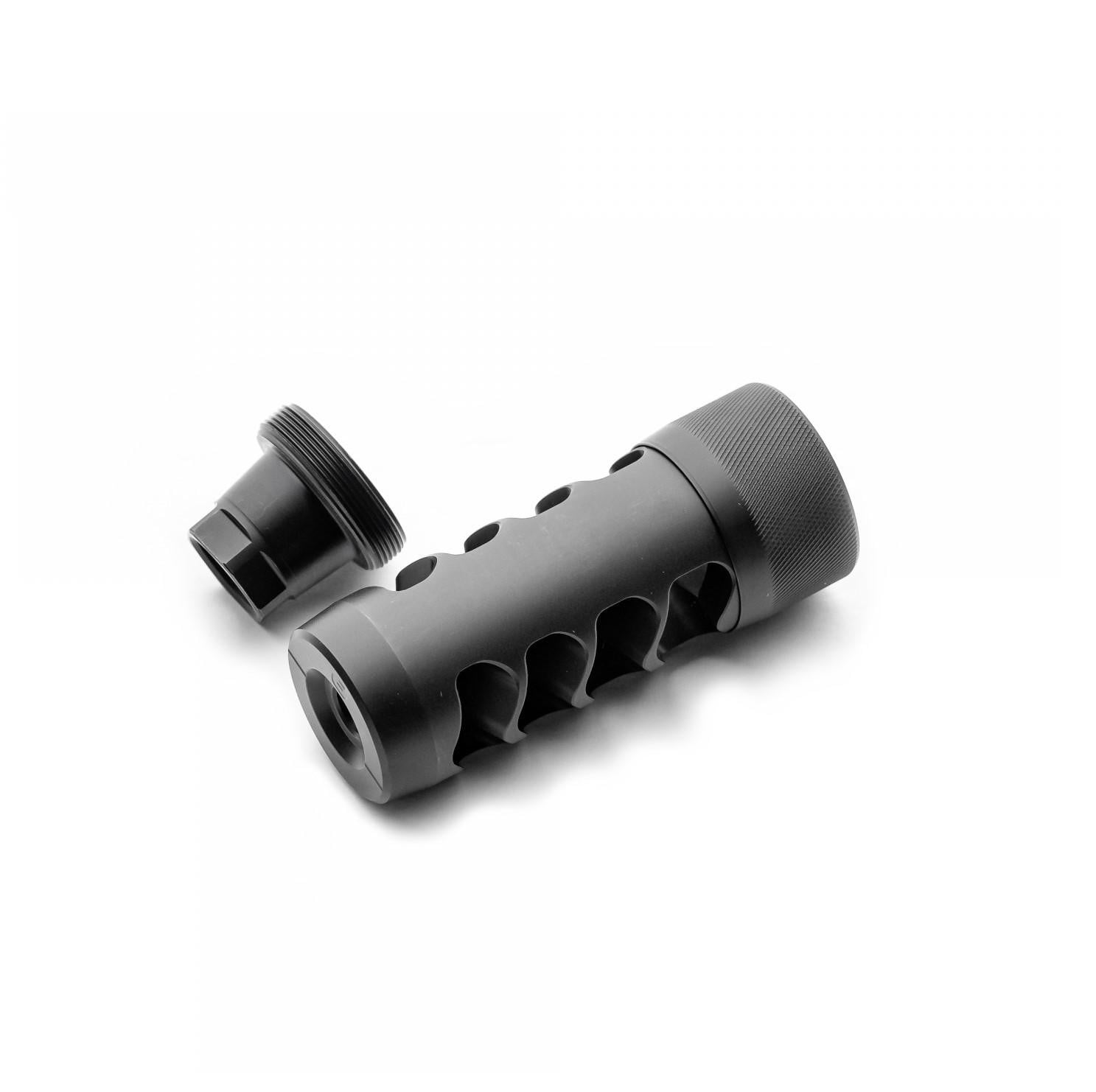

What sets the Hellfire apart is the self-timing system: no guessing, no tools required, and no re-zeroing after removal and reinstallation. The brake threads onto a universal adapter via left-hand thread, and a simple hand-tightened knurled collar locks it in place once you rotate the brake level. The face is engraved with caliber marking and a horizontal reference line to guide correct orientation. Made from heat-treated 17-4PH stainless steel and finished in black nitride, it's manufactured on CNC equipment in northwest Ohio and marked 100% USA-made.
The 338 Hellfire measures 1 inch in outer diameter with a 1.1-inch collar, adding approximately 2 inches to barrel length. The 5/8-24 thread pattern is standard for most .338 magnums. Installation is straightforward: torque the universal adapter onto your barrel with a standard wrench—this adapter stays put permanently—then thread on the brake/collar assembly, rotate to level, push into the adapter taper until you feel it lock, and hand-tighten the collar. Return to zero is excellent, so you won't chase your groups if you remove and reinstall the brake later.
| Brand | Area 419 |
| Product | Hellfire Self Timing Muzzle Brake |
| Caliber | .338 (338 WM, 338 LM, 338 NM, 338 Edge, and similar) |
| Thread Pattern | 5/8-24 |
| Material | Heat-treated 17-4PH stainless steel |
| Finish | Black nitride |
| Brake OD | 1 inch |
| Collar OD | 1.1 inches |
| Length Added | Approximately 2 inches to barrel OAL (2.6 inches from thread shoulder) |
| Installation | Self-timing with hand-tightened collar (no tools required for timing) |
| Tested Recoil Reduction | 52% on 6.5 Creedmoor reference rifle |
| Made in | USA (northwest Ohio) |
The Hellfire 338 is designed for any .338-caliber cartridge up to and including .338-diameter bullets. This includes 338 Win Mag, 338 Lapua Mag, 338 Norma Mag, 338 Edge, and other .338 magnums. The 5/8-24 thread pattern is standard for these calibers.
No. The self-timing system requires only a standard wrench to install the universal adapter onto your barrel. After that, timing the brake is done by hand: thread on the brake/collar assembly, rotate it level using the engraved reference line, push it into the adapter taper until you feel it lock, and hand-tighten the collar. No additional tools or gauges needed.
No. The Hellfire has excellent return to zero, meaning removal and reinstallation will not require a zero change. The self-timing system ensures the brake locks into the same position each time.
The brake assembly adds approximately 2 inches to your barrel's overall length (2.6 inches measured from the thread shoulder). The brake body is 1 inch in outer diameter with a 1.1-inch collar.
SKU: 167525030 • Width: 3.625in • Height: 1.75in • Depth: 9.25in • Weight: 0.37oz
