Trijicon114465576
Trijicon 34mm Cantilever Mount w/Q-LOC, 1.59" Height, Black Finish$292.85
Loading...
Loading...
Loading...
Availability: In Stock

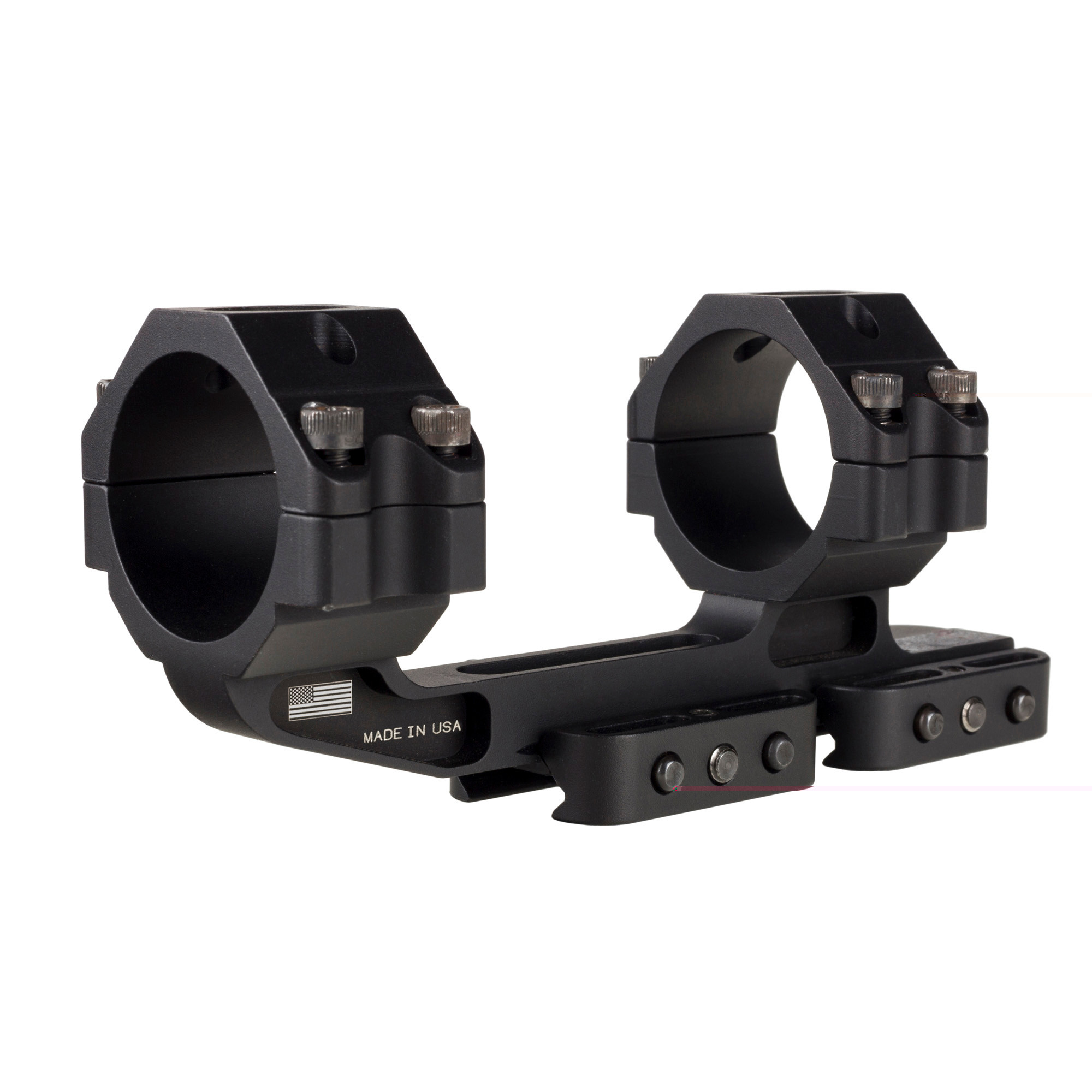

The Trijicon Q-LOC Cantilever Mount is a 30mm tube scope ring engineered for hunters and precision shooters who demand low-profile mounting without sacrificing zero retention or reliability. Built around Trijicon's Q-LOC technology, this mount holds your optic steady and returns to zero reliably, even on hard-recoiling rifles used in hunting or long-range applications. The one-handed, tool-free mounting system means you can install or adjust your scope quickly in the field, while the spring-loaded design maintains constant tension on the ring caps—your scope stays put whether you're fully torqued down or running lighter specs.
Machined from 6061-T6 aluminum and mil-spec drop-tested, the Q-LOC mount delivers rugged durability in a lightweight package. The 1.59" height positions your optic just 1.59" above the Picatinny rail, keeping your sight picture low and your cheek weld natural—a critical advantage whether you're running a hunting rifle or a precision bolt gun. Its matte black anodized finish resists glare and corrosion, and the mount is compatible with any mil-spec or NATO Picatinny rail. Trijicon manufactures this mount in the USA, backing it with the quality control you expect from a company that builds both professional military optics and civilian hunting gear.
The Q-LOC system's spring-tension design is its real strength: it allows flexibility during installation but holds rock-solid during use. You can apply spring tension only (12–16 in./lbs) for a tool-free mount that won't shift, or tighten all the way to 44–66 in./lbs if you prefer maximum mechanical lock. Ring caps torque to 14–16 in./lbs. The mount accepts objectives up to 56mm, giving you room for larger bell optics without interference.
| Tube Diameter | 30mm |
| Optical Axis Height (Rail to Center) | 1.59" |
| Maximum Objective Diameter | 56mm |
| Material | 6061-T6 Aluminum |
| Finish | Matte Black Anodized |
| Rail Compatibility | Mil-Spec / NATO Picatinny |
| Spring Tension Torque (Rail) | 12–16 in./lbs |
| Full Torque (Rail) | 44–66 in./lbs |
| Ring Cap Torque | 14–16 in./lbs |
| Country of Origin | USA |
The Trijicon Q-LOC is compatible with any mil-spec or NATO Picatinny rail, making it versatile across modern AR-15s, hunting rifles, and tactical platforms.
This model is designed for 30mm scope tubes. Trijicon also makes Q-LOC mounts in other tube diameters if you need a different size.
Yes—the mount accommodates objective lenses up to 56mm in diameter, giving you flexibility with mid-range and larger-bell hunting and precision optics.
No. The one-handed, tool-free mounting system lets you install or remove your scope without wrenches or special tools. You can run it on spring tension alone (12–16 in./lbs) or torque it down fully (44–66 in./lbs) with standard torque tools if you prefer maximum mechanical lock.
SKU: 114463143 • Width: 5in • Height: 3in • Depth: 8in • Weight: 0.75oz
