The Trijicon IR-Patrol M300W 1-8x19 rifle-mounted thermal system brings serious night capability to hunters, tactical shooters, and military/law enforcement professionals who need reliable heat-signature imaging in total darkness. Built around an uncooled vanadium oxide sensor with 640x480 resolution, this compact thermal scope delivers clear, real-time target acquisition without the weight and cost of cryogenically cooled alternatives. At 19mm objective and 60 Hz frame rate, the M300W balances fast refresh rates (critical for tracking moving game or threats) with a manageable form factor that mounts cleanly to modern tactical rifles.
What sets the M300W apart from budget thermal options is Trijicon's feature set: E-Zoom polarity control lets you flip between white-hot and black-hot imaging depending on your environment and preference, while the edge-detect mode enhances target contrast in cluttered terrain. Digital Contrast Enhancement (DCE) sharpens images when conditions get challenging, and the monochrome OLED display renders everything at full 640x480 resolution. The system reaches operating temperature in roughly 5 seconds—practical for hunters who don't have time to wait.
The package ships with both a Wilcox shoe side-flip mount and a bridge mount, giving you immediate flexibility in how you integrate this onto your rifle. Battery life runs 1 to 1.5 hours at full 60 Hz frame rate on a single CR123, or up to 3.5 hours with two CR123s. The diopter range of -6 to +2 and 27mm eye relief accommodate most shooters in natural shooting positions. Operating temperature spans -40°C to +55°C, so it handles genuine field conditions from high-altitude hunts to desert operations.
This is a serious tool for precision thermal hunting and professional work. It's not a budget impulse buy, but if you need to see in the dark and put rounds on target, the M300W delivers.
| Sensor Type | Uncooled vanadium oxide (VOx) |
| Sensor Resolution | 640x480 pixels |
| Sensor Pitch | 12 microns |
| Thermal Sensitivity | <50 mK |
| Spectral Response | 8–12 microns |
| Frame Rate | 60 Hz |
| Objective Size | 19mm |
| Magnification | 1–8x |
| Display Type | Monochrome digital OLED |
| Display Resolution | 640x480 pixels |
| Diopter Range | -6 to +2 |
| Eye Relief | 27mm |
| Battery Type | CR123 (1 or 2 with adapter) |
| Battery Life @ 60 Hz | 1–1.5 hours (1 battery); 2–3.5 hours (2 batteries) |
| Startup Time | Approximately 5 seconds |
| Operating Temperature | -40°C to +55°C |
| Storage Temperature | -45°C to +75°C |
| Dimensions | 5.95" L × 2.0" H × 2.95" W |
| Weight | 454 grams |
| Mounts Included | Wilcox shoe side-flip mount, bridge mount |
| Video Output | Analog RS-170 (with optional cable) |
| Image Capture | Yes (download cable included) |

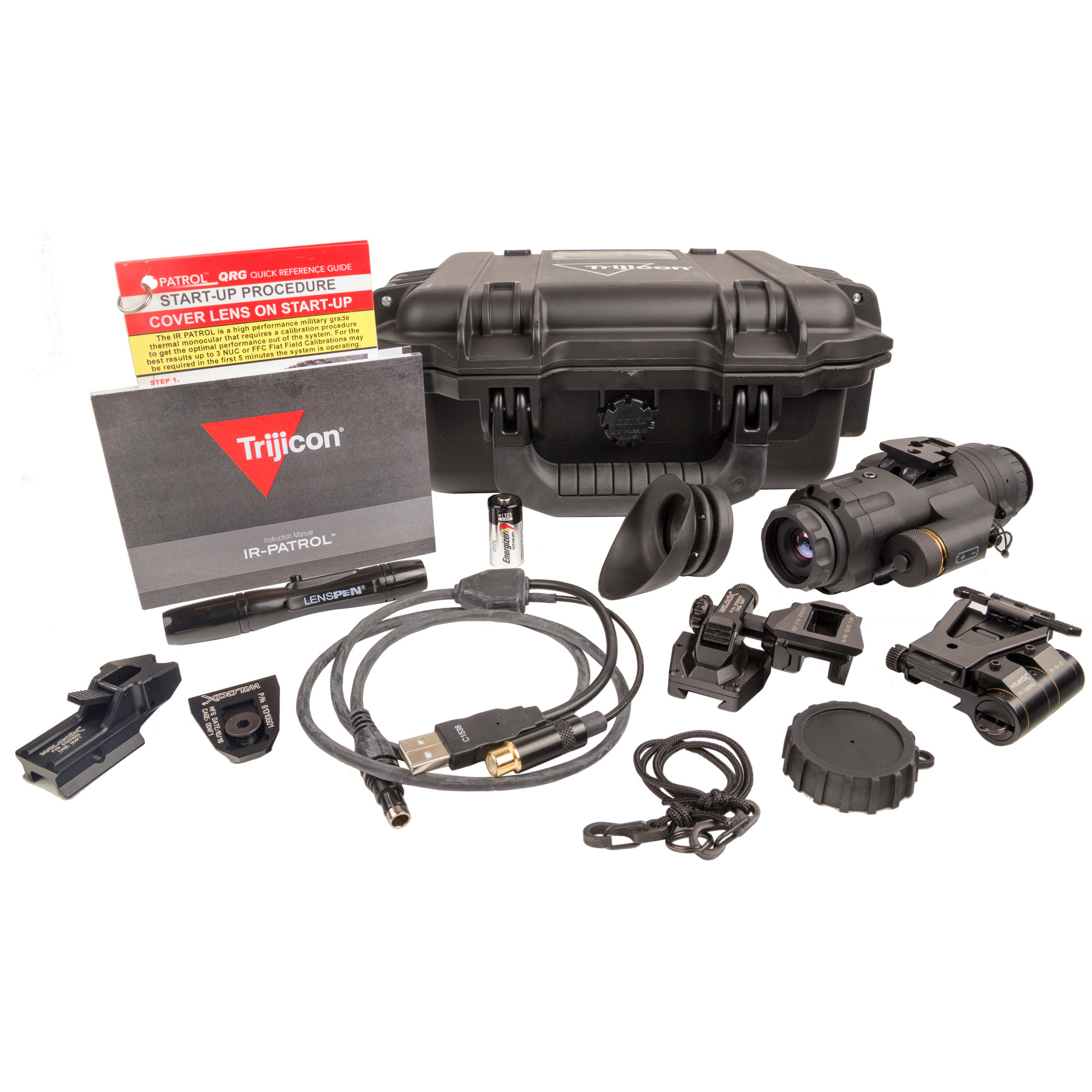

The system ships with both a Wilcox shoe side-flip mount and a bridge mount, so you can choose the configuration that works best for your rifle setup. An image download cable is also included for transferring captured thermal images to external devices.
Battery life depends on how many CR123 batteries you install and what frame rate you're running. With a single CR123 at 60 Hz, you get 1 to 1.5 hours of operation. With two CR123 batteries installed via an adapter, runtime extends to 2 to 3.5 hours at 60 Hz. The system uses standard CR123 3-volt batteries.
Yes. The M300W is rated to operate from -40°C to +55°C, making it suitable for high-altitude alpine hunts, arctic conditions, and hot desert environments. Storage temperature range extends from -45°C to +75°C.
The M300W's polarity control lets you switch between white-hot (warm objects appear bright) and black-hot (warm objects appear dark) rendering. Different hunters and tactical operators prefer different polarities depending on terrain and personal eye adaptation, so having both modes available means you can optimize for your specific conditions.
SKU: 114465500 • Width: 10.25in • Height: 8.75in • Depth: 14.25in • Weight: 5.31oz
