Availability: In Stock

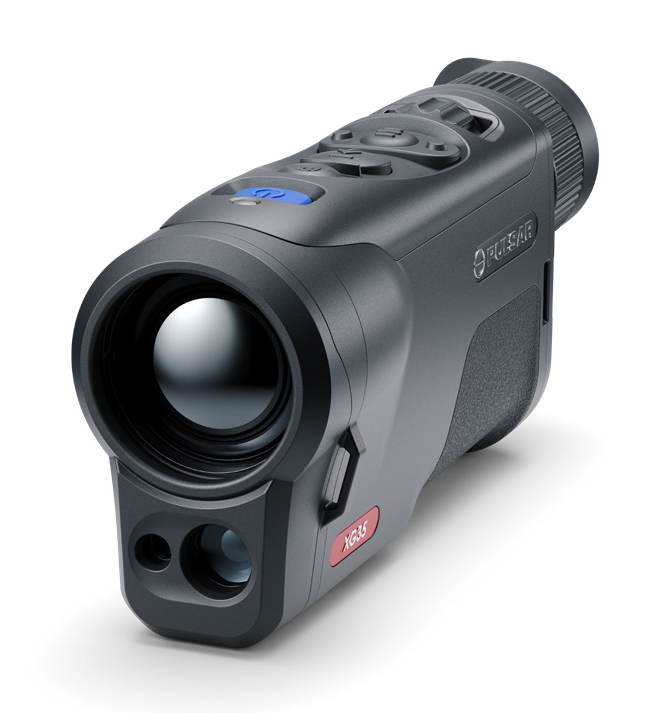

The Pulsar Oryx LRF XG35 thermal rangefinding monocular combines long-range detection, built-in laser ranging, and rugged ergonomics into a single compact optic you can operate comfortably one-handed. Built for serious hunters and tactical users who need thermal imaging plus precise distance measurement, this monocular delivers a 1800-meter detection range and an integrated laser rangefinder with up to 1500 meters of measuring capability and ±1-meter accuracy. The 2.5-20x magnification and 35mm objective lens give you flexibility across distances, while the 640x480 thermal sensor with 12-micron pixel pitch and <20 mK sensitivity maintains sharp image quality in total darkness and poor weather conditions.
Built tough for the field, the Oryx LRF features a magnesium alloy housing rated IP67—dust-tight and submersible to 1 meter—and operates across a –25 to +40°C temperature range. The 50 Hz refresh rate keeps motion smooth and stable, and the AMOLED HD display (1024x768 resolution) delivers vivid contrast that won't betray your position. Battery life spans 12 hours on the included 4900 mAh lithium-ion pack, with USB Type-C fast charging and external power supply options when you're running extended missions. Wi-Fi streaming and the Stream Vision 2 app let you share your feed or record reconnaissance without breaking position.
Video and still-image recording (MP4 and JPG formats) with 64 GB of onboard storage rounds out a monocular engineered to work as hard as you do. Whether you're glassing a ridgeline at night, confirming distance on a distant target, or documenting the terrain, the Oryx LRF tucks into a pack or chest rig and stays reliable through harsh conditions.
| Brand | Pulsar |
| Model | PL77504 Oryx LRF XG35 |
| Magnification | 2.5–20x |
| Objective Lens | F35/1.0 (35 mm) |
| Thermal Sensor Type | Uncooled |
| Thermal Resolution | 640×480 pixels |
| Pixel Pitch | 12 microns |
| NETD (Noise Equivalent Temperature Difference) | <40 mK (sNETD <20 mK) |
| Frame Rate | 50 Hz |
| Detection Range | 1800 meters |
| Field of View | 12.5° (H×V) |
| Eye Relief | 14 mm |
| Display | AMOLED HD, 1024×768 pixels |
| Laser Rangefinder Max Range | 1500 meters |
| Rangefinder Accuracy | ±1 meter |
| Laser Wavelength | 905 nm |
| Laser Safety Class | 1 (IEC 60825-1:2014) |
| Video/Photo Recording | MP4 (video) and JPG (photo), max 1024×768 |
| Internal Storage | 64 GB |
| Wi-Fi | IEEE 802.11 b/g/n/ac, 2.4/5 GHz (WPA) |
| Battery Type | APS 5 Li-ion, 4900 mAh |
| Battery Life | 12 hours |
| Charging | USB Type-C (5V; 9V Power Delivery) |
| Operating Temperature | –25 to +40°C |
| Water/Dust Rating | IP67 |
| Housing Material | Magnesium alloy |
| Dimensions | 179×52×77 mm |
| Weight | 0.5 kg (500 g) |
| Color | Black |
| Supported App | Stream Vision 2 |
Yes. The thermal imaging detects game at 1800 meters, and the integrated laser rangefinder measures distance to 1500 meters with ±1-meter accuracy, giving you both target acquisition and precise range data in a single tool. The 2.5-20x magnification and thermal contrast make it effective for low-light and night hunting scenarios.
The included 4900 mAh lithium-ion battery provides up to 12 hours of operation. You can also use USB Type-C charging with 5V or 9V Power Delivery external supplies to extend runtime on longer deployments.
The monocular carries an IP67 rating (IEC60529), meaning it is dust-tight and can be submerged to 1 meter depth. The magnesium alloy housing is also designed to handle impacts and harsh field conditions, and it operates reliably from –25 to +40°C.
Yes. The Oryx LRF has 64 GB of built-in storage and records video in MP4 format and stills in JPG format at up to 1024×768 resolution. It also supports Wi-Fi streaming via the Stream Vision 2 app, so you can share or record your thermal feed remotely.
SKU: 194198500 • Width: 6.3in • Height: 4.8in • Depth: 9.6in • Weight: 3oz
