Availability: In Stock

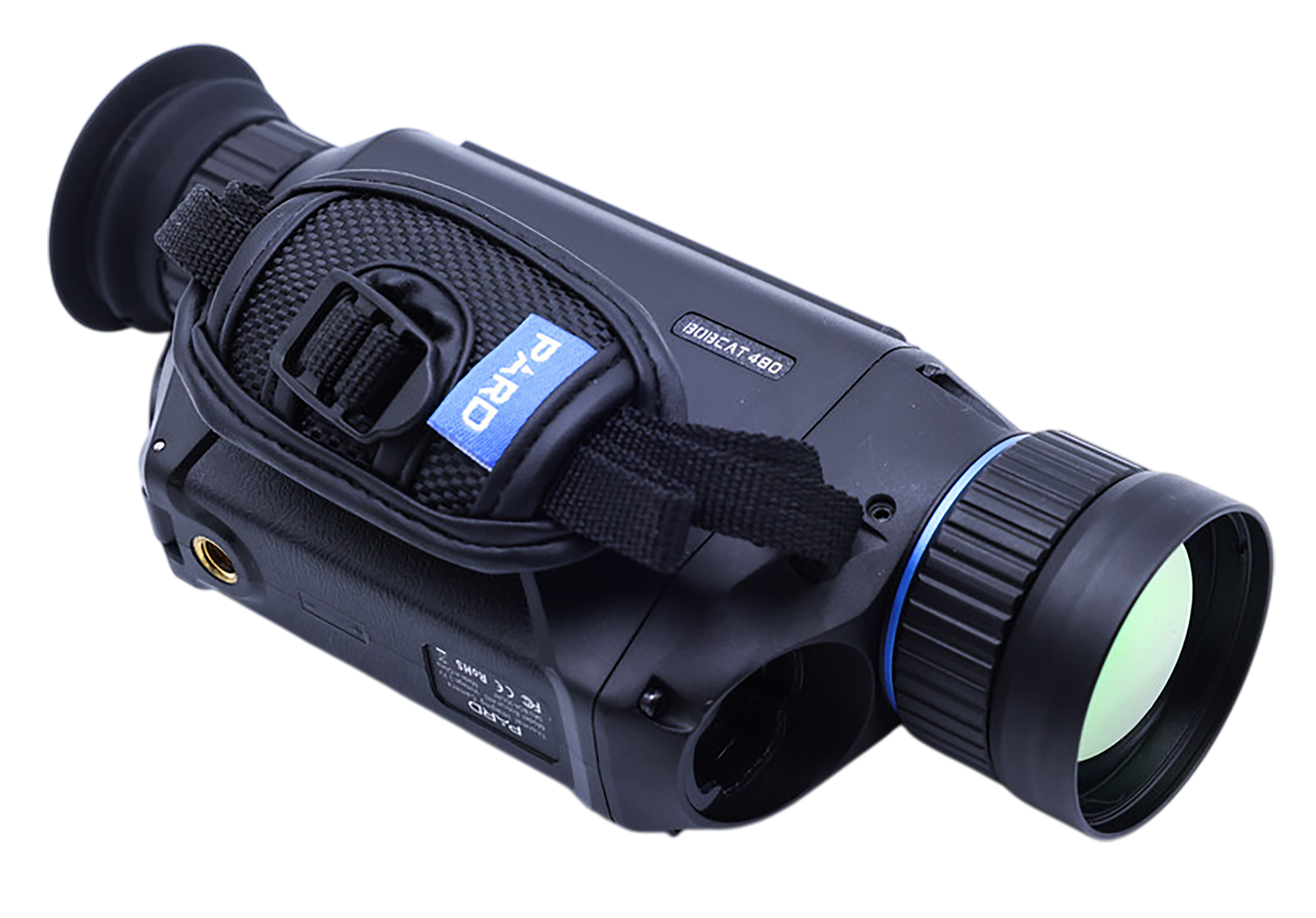

The PARD BO6-35/LRF Bobcat 640 LRF thermal monocular is a lightweight, handheld thermal imaging device built for hunters, search and rescue teams, and field operators who need reliable heat detection in low-light or no-light conditions. This compact monocular pairs a 640×512 uncooled sensor with a 35mm objective lens and 2.6× magnification to deliver clear thermal imagery across a wide field of view—ideal for glassing terrain, locating game, or conducting night operations without fatigue from holding heavy glass.
The Bobcat 640 uses a vanadium oxide (VOx) sensor with 12-micron pixel size and 18mK sensitivity, meaning it picks up even subtle thermal differences in the environment. The 50 Hz frame rate keeps the image fluid and responsive. Display is handled by a 1920×1080 OLED screen, which offers sharper contrast and better brightness than older LCD technology. Digital zoom extends your reach with 2×, 4×, 6×, and 8× magnification steps, letting you dial in distant subjects without losing image quality.
Built for real-world use, the monocular weighs just 405 grams and measures 170×70×43mm—easily stowed in a pack or held steady for extended periods. The housing is AL6061 aluminum and composite material, with all-glass multi-coated optics. An integrated laser rangefinder reaches out to 1,000 meters, compass, and configurable image modes (WT-HOT, BK-HOT, H-light, RD-HOT, IN-HOT, SKY) give you tools to adapt to different conditions. Recording features include photo (1440×1080 JPG) and video (1440×1080 MP4) capture with audio, time stamps, and loop recording to a microSD card (up to 128GB). WiFi and USB Type-C connectivity let you review footage and update firmware via the PardVision2 app. Runs on a single 18650 Li-ion battery.
| Sensor Type | Uncooled VOx (vanadium oxide) |
| Sensor Resolution | 640×512 pixels |
| Pixel Size | 12×12 microns |
| Thermal Sensitivity (NETD) | 18mK (0.018°C) |
| Frame Rate | 50 Hz |
| Objective Lens | 35mm, all-glass multi-coated |
| Optical Magnification | 2.6× |
| Digital Zoom | 2×, 4×, 6×, 8× |
| Field of View (Horizontal) | 12.5° (21.9m @ 100m) |
| Field of View (Vertical) | 10° (17.6m @ 100m) |
| Field of View (Diagonal) | 16° |
| Focus Range | 3m to Infinity |
| Diopter Adjustment | ±5D |
| Display Type | OLED |
| Display Resolution | 1920×1080 pixels |
| Image Modes | WT-HOT, BK-HOT, H-light, RD-HOT, IN-HOT, SKY |
| Photo Resolution | 1440×1080 JPG |
| Video Resolution | 1440×1080 MP4 |
| Laser Rangefinder | 1,000 meters |
| Storage | Micro SD card (up to 128GB) |
| Battery | 1× Li-ion 18650 (3.7V nominal, 6V external supply) |
| Connectivity | WiFi, USB Type-C |
| App Support | PardVision2 |
| Housing Material | AL6061 aluminum and composite |
| Dimensions | 170×70×43mm (L×W×H) |
| Weight | 405g (with battery) |
The integrated laser rangefinder has a maximum range of 1,000 meters, allowing you to measure distance to thermal targets in the field.
Yes. The Bobcat 640 records video at 1440×1080 resolution in MP4 format, with optional audio recording, time stamps, and loop recording capability. Photos are captured as 1440×1080 JPG files. All files are stored on a microSD card (up to 128GB).
The monocular connects via WiFi and USB Type-C. You can use the PardVision2 app to review footage, manage files, and update firmware remotely.
Yes. As a thermal imaging device, it detects heat signatures rather than visible light, making it fully functional in complete darkness, fog, and low-visibility conditions where conventional optics fail.
The monocular runs on a single Li-ion 18650 battery (3.7V nominal). You can also supply external power via the USB Type-C connection.
SKU: 194198507 • Width: 6in • Height: 4in • Depth: 7.9in • Weight: 1.98oz
