Egw Marlin 1894 Undrilled 0 Moa

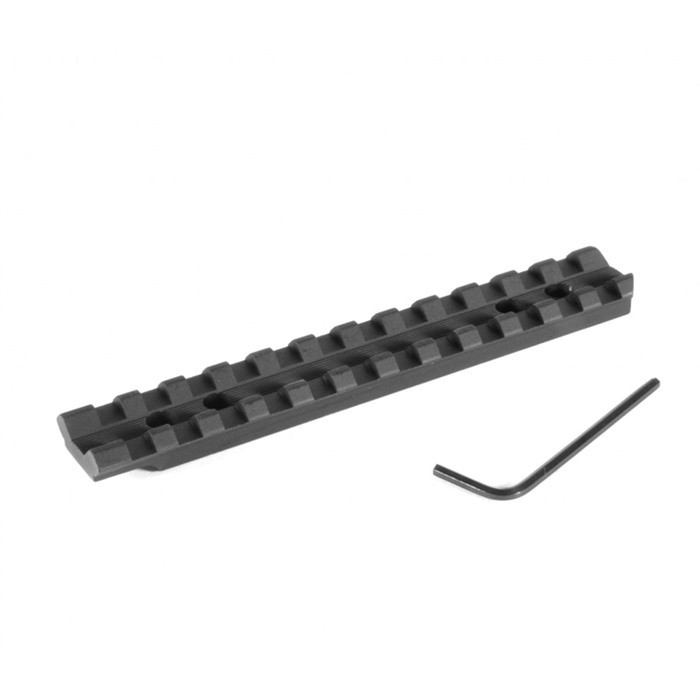

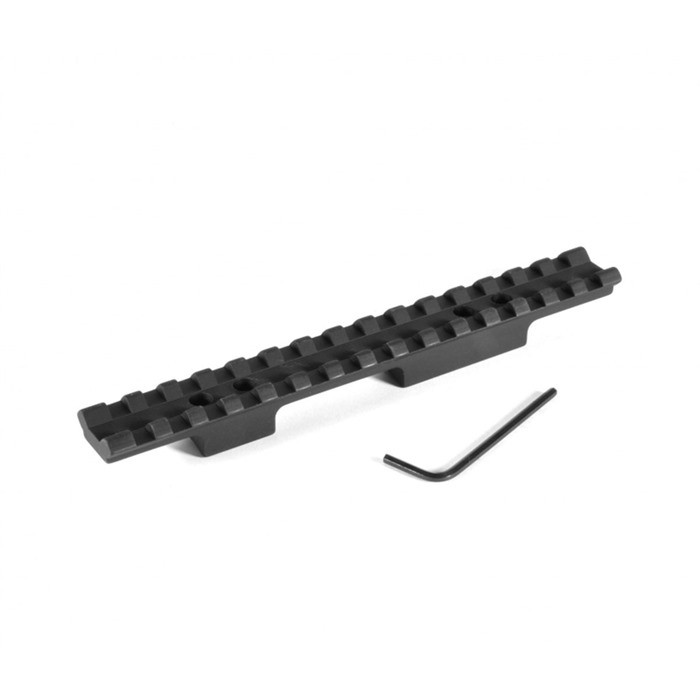

The EGW Marlin 1894 scope base gives you a solid, no-gunsmith way to mount optics on your lever-action rifle. This one-piece Picatinny rail mounts directly to your Marlin 1894's factory receiver holes—no drilling, no tapping, no trips to a gunsmith. Whether you're hunting deer in brush country or setting up for longer-range accuracy, a quality scope mount is the foundation of a reliable setup, and EGW's precision engineering means your glass stays put through recoil and field use.

Built from extruded 6061-T6 aluminum, this mount is lightweight without sacrificing rigidity. The full-width cross-slots are machined to MIL-STD 1913 specifications (±.002") so it plays well with standard Picatinny and Weaver scope rings. That means you're not locked into one ring choice—you can experiment with eye relief and ring height to dial in your ideal sight picture. The one-piece design keeps everything in solid alignment, a detail that matters when you need consistent performance in the field.

Installation is straightforward: the base includes socket head Torx screws and wrench, and EGW recommends 20 inch-pounds of torque with a drop of blue threadlocker to lock everything in place. It's a clean, direct solution for Marlin 1894 owners who want to upgrade without permanent modifications to the rifle.

Key Features

• One-piece Picatinny rail—no drilling or tapping required
• Mounts to factory scope mount holes on Marlin 1894 receiver
• Accepts standard Picatinny or Weaver scope rings for flexibility
• Extruded 6061-T6 aluminum construction—lightweight and rigid
• MIL-STD 1913 specification cross-slots (±.002") for precision fit
• Includes socket head Torx screws and wrench

Specifications

Brand	EGW
Rifle Compatibility	Marlin 1894
Mount Type	One-piece Picatinny rail
Material	Extruded 6061-T6 aluminum
Rail Standard	MIL-STD 1913 Picatinny
Ring Compatibility	Picatinny or Weaver rings
Installation	Factory receiver holes (no drilling)
Included Hardware	Socket head Torx screws and wrench
Recommended Torque	20 inch-pounds

Frequently Asked Questions

Will this mount fit my Marlin 1894 without modifications?

Yes. This base mounts directly to the existing factory scope mount holes on the Marlin 1894 receiver—no drilling, tapping, or gunsmithing required.

What scope rings can I use with this mount?

The mount accepts any standard Picatinny or Weaver scope rings, giving you flexibility to choose rings that match your eye relief and ring height preferences.

What's included in the box?

The mount comes with socket head Torx screws and a Torx wrench for installation. EGW recommends applying blue threadlocker (not included) at 20 inch-pounds of torque during mounting.

Is this a lightweight tactical mount?

This is a standard one-piece Picatinny rail mount made from extruded aluminum. It is lightweight by design, though EGW does offer tactical variants with a milled center channel for additional weight reduction if needed.
