Availability: In Stock

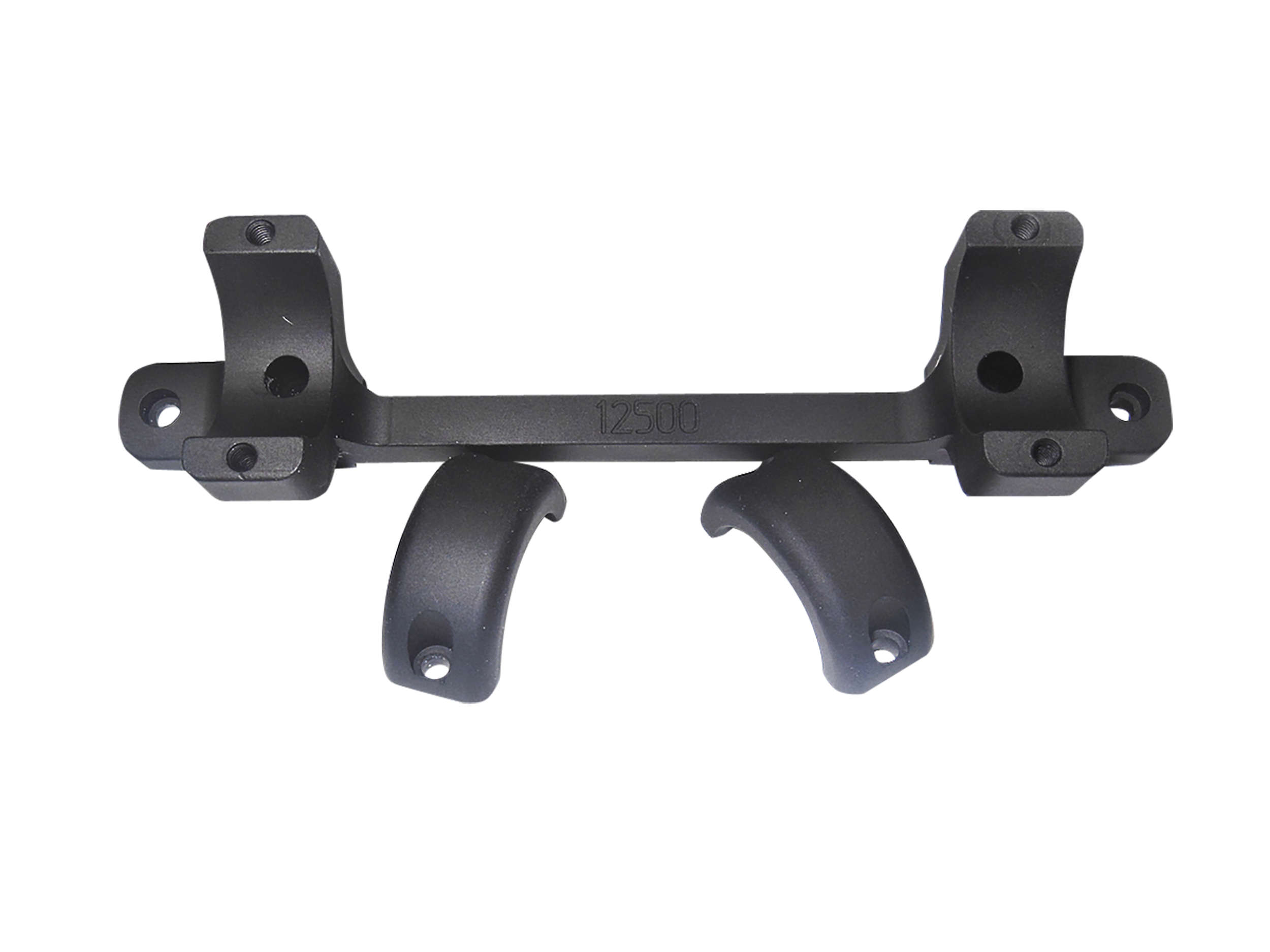

The DNZ Products Game Reaper 1-piece scope base with 30mm integral rings is purpose-built for Browning BAR rifles and compatible long-action BLR models, delivering a solid mounting solution without the complexity of two-piece systems. Machined from billet 6061-T6 aluminum and made in the USA, this mount eliminates moving parts between your receiver and optic, creating a rigid, shock-absorbing platform that handles recoil and temperature swings better than steel at roughly one-third the weight. If you're running a BAR or long-action BLR and want a no-nonsense scope mount that won't shift zero, this is engineered for that job.
The integral 30mm rings come factory-aligned to your rifle's receiver, so there's no guesswork in ring spacing or cant. DNZ's design uses precision socket-head cap screws and four times the threaded engagement of comparable one-piece mounts, translating to strength that lasts through seasons of hunting and range work. Both the base and rings thread with 7/64" Allen wrenches—standard sizes (6-48 for base, 6-40 for rings) you can source anywhere if you ever need a replacement screw. The mount accepts both left and right-hand rifles and also fits Benelli R1 short-action rifles, adding flexibility if your gun room grows.
Height options span low (.94"), medium (1.06"), and high (1.19") above the receiver centerline, letting you dial in eye relief and cheek weld comfort for your scope and stock combination. The 4.24" outside-to-outside ring spacing and .63" ring width accommodate standard 30mm tubes. Installation is straightforward: four holes with .50", 3.19", and .50" spacing leave room for most gas tube and action designs. This is the kind of mount that disappears once it's tight—no rattles, no surprises, just a BAR that holds its aim.
| Tube Diameter | 30mm |
| Ring Width | .63" |
| Outside-to-Outside Ring Spacing | 4.24" |
| Hole Spacing | .50", 3.19", .50" |
| Base Screws | 6-48 X 1/4" (7/64" Allen wrench) |
| Ring Screws | 6-40 X 5/8" (7/64" Allen wrench) |
| Height – Low | .94" |
| Height – Medium | 1.06" |
| Height – High | 1.19" |
| Material | Billet 6061-T6 aluminum |
| Handedness | Ambidextrous (fits left and right) |
Yes. The Game Reaper base is designed for all Browning BAR actions and long-action BLR rifles. It also fits Benelli R1 short-action rifles. The same mount works on both left and right-hand rifles, so orientation isn't a concern.
The integral rings are machined for 30mm scope tubes. Ring width is .63" and outside-to-outside spacing is 4.24", suitable for standard 30mm optics.
That depends on your scope and stock geometry. Low (.94") works for most hunting rifles with standard combs; medium (1.06") adds clearance for higher-mounted scopes or cheek-rest stocks; high (1.19") accommodates taller optics or non-standard setups. Measure your scope diameter and check your rifle's receiver profile before ordering.
The base mounts with four screws spaced at .50", 3.19", and .50". Both base screws (6-48) and ring screws (6-40) require a 7/64" Allen wrench. No special tools or alignment jigs are needed; the integral rings come pre-aligned to your receiver.
SKU: 114462227 • Width: 3.7in • Height: 1.9in • Depth: 10.8in • Weight: 0.38oz
