$170.00
Availability: In Stock

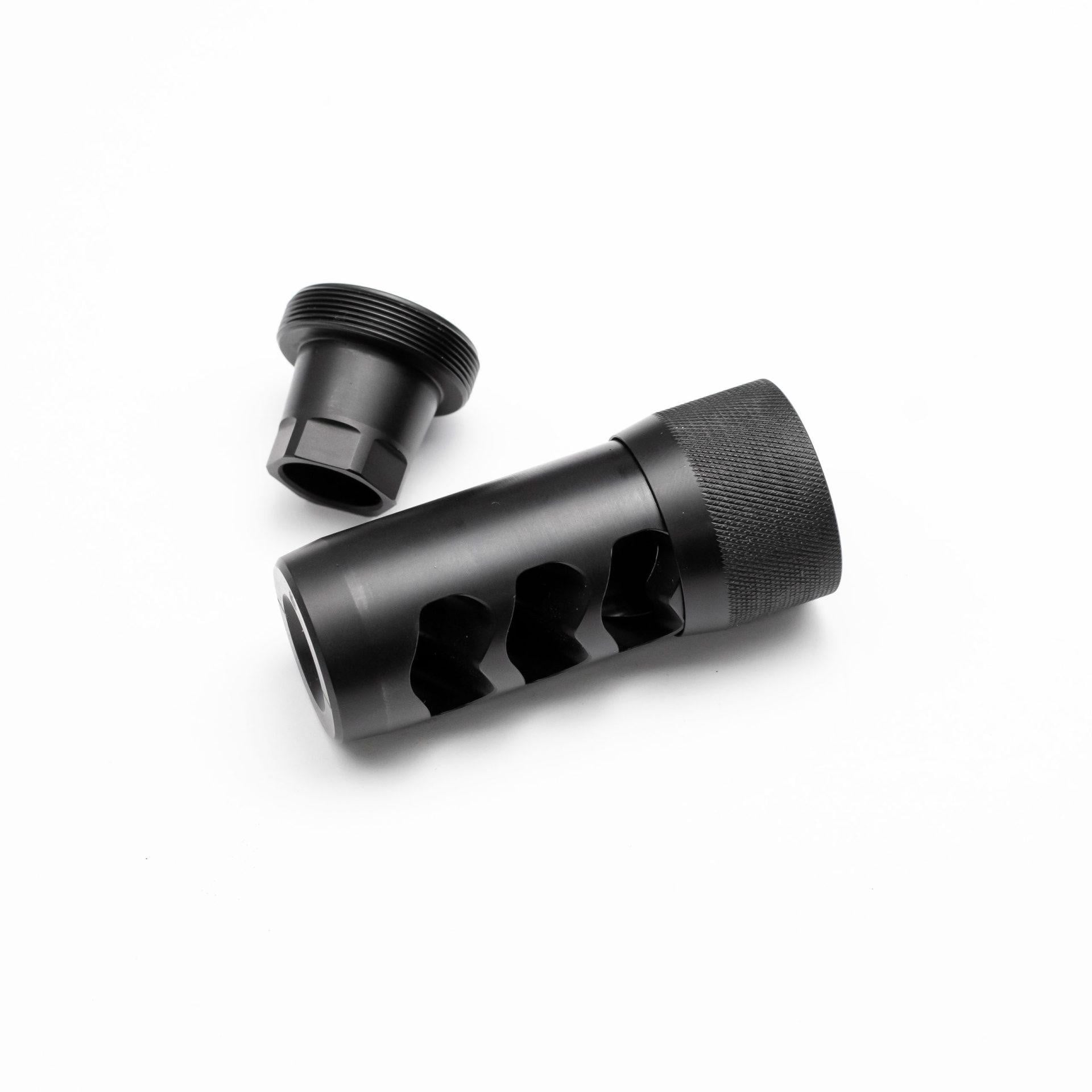

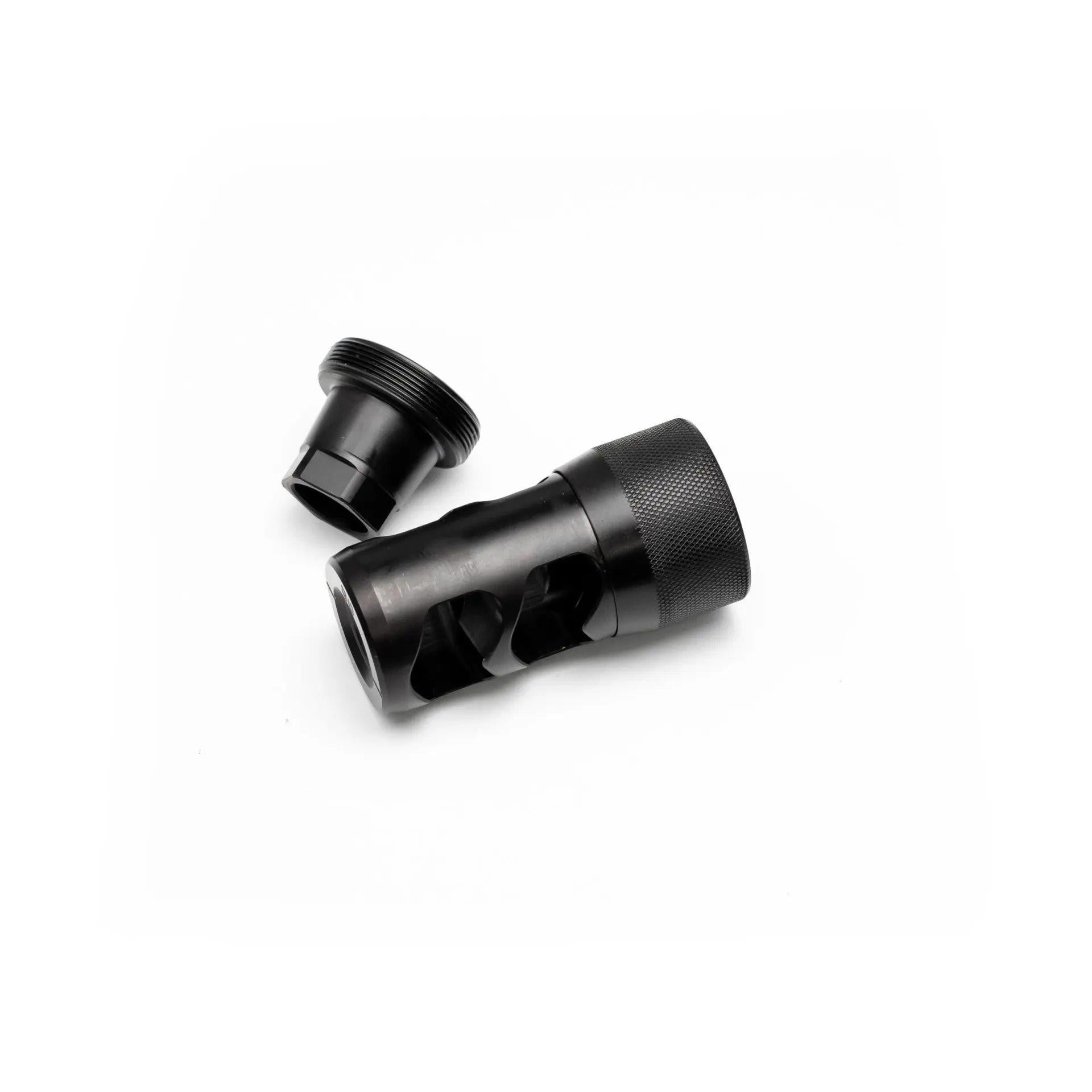

The Area 419 Hellfire self-timing muzzle brake for .223/6mm delivers serious recoil reduction without the installation headaches that plague traditional brakes. Built for shooters who want consistent, repeatable performance on platforms chambered in .223, 5.56 NATO, .204 Ruger, .243 Winchester, and similar calibers up to 6mm, this brake solves the real-world problem of achieving proper port orientation: you time it, lock it, and it stays timed. No more second-guessing whether your brake is level when you torque it down.
The engineering here is straightforward but clever. A tapered self-locking system means the brake physically seats the same way every time—pull it off to clean or swap uppers, reinstall it, and your zero doesn't shift. The universal adapter threads onto your barrel with a standard 5/8" wrench and stays put; from there, the brake assembly threads on with a hand-knurled collar that requires zero tools to time and tighten. The face of the brake is engraved with the caliber marking and a horizontal line to guide you to level orientation, then a firm push seats it on the taper and you're done.
Performance-wise, the Hellfire uses rearward-facing ports and a proprietary design that controls muzzle rise without top porting—independent testing showed 52% recoil reduction on a 6.5 Creedmoor platform, outperforming some of the market's most popular alternatives. Construction is heat-treated 17-4PH stainless steel in black nitride finish, CNC-machined in Ohio and fully made in the USA. The brake assembly adds 2.6" from the thread shoulder to your barrel's overall length and features a 1" OD brake body with a 1.1" collar. This is the kind of accessory that rewards attention to detail with hassle-free, repeatable results—exactly what serious shooters expect.
| Caliber Compatibility | .223, 5.56 NATO, .204 Ruger, .243 Winchester, 6mm and similar up to .243 |
| Thread Pattern | 1/2-28 |
| Material | Heat-treated 17-4PH stainless steel |
| Finish | Black nitride |
| Brake OD | 1" |
| Collar OD | 1.1" |
| Length Added to Barrel | 2.6" from thread shoulder (approximately 2" added to overall barrel length) |
| Installation Hardware | Universal adapter (installed with 5/8" wrench); hand-knurled collar for timing |
| Made In | USA |
The Hellfire is designed for .223, 5.56 NATO, .204 Ruger, .243 Winchester, 6mm, and similar bullet calibers up to and including .243 (6mm). It comes threaded in 1/2-28, which is the standard for most modern .223-based platforms.
The brake uses a tapered, self-locking mechanism. After you thread the universal adapter onto your barrel with a 5/8" wrench (and leave it there permanently), you thread the brake assembly onto the adapter with the hand-knurled collar until snug. Rotate the brake to your desired orientation—the engraved caliber marking and horizontal line help you get it level—then push it firmly into the adapter where it locks onto the taper. Tighten the collar fully by hand and you're done. This design ensures the brake seats identically every time, so removing and reinstalling it requires no zero adjustment.
You need only a 5/8" wrench to install the universal adapter onto your barrel (a one-time step). Timing and locking the brake itself is done entirely by hand using the knurled collar—no tools required. The engraved index mark and level line on the brake face guide proper orientation.
No. The self-timing tapered design provides excellent return-to-zero performance, so you can remove and reinstall the brake without losing your zero. The universal adapter stays permanently on the barrel, and the brake assembly seats on the same taper each time.
SKU: 167525888 • Width: 3.5in • Height: 1.75in • Depth: 9.25in • Weight: 0.4oz
