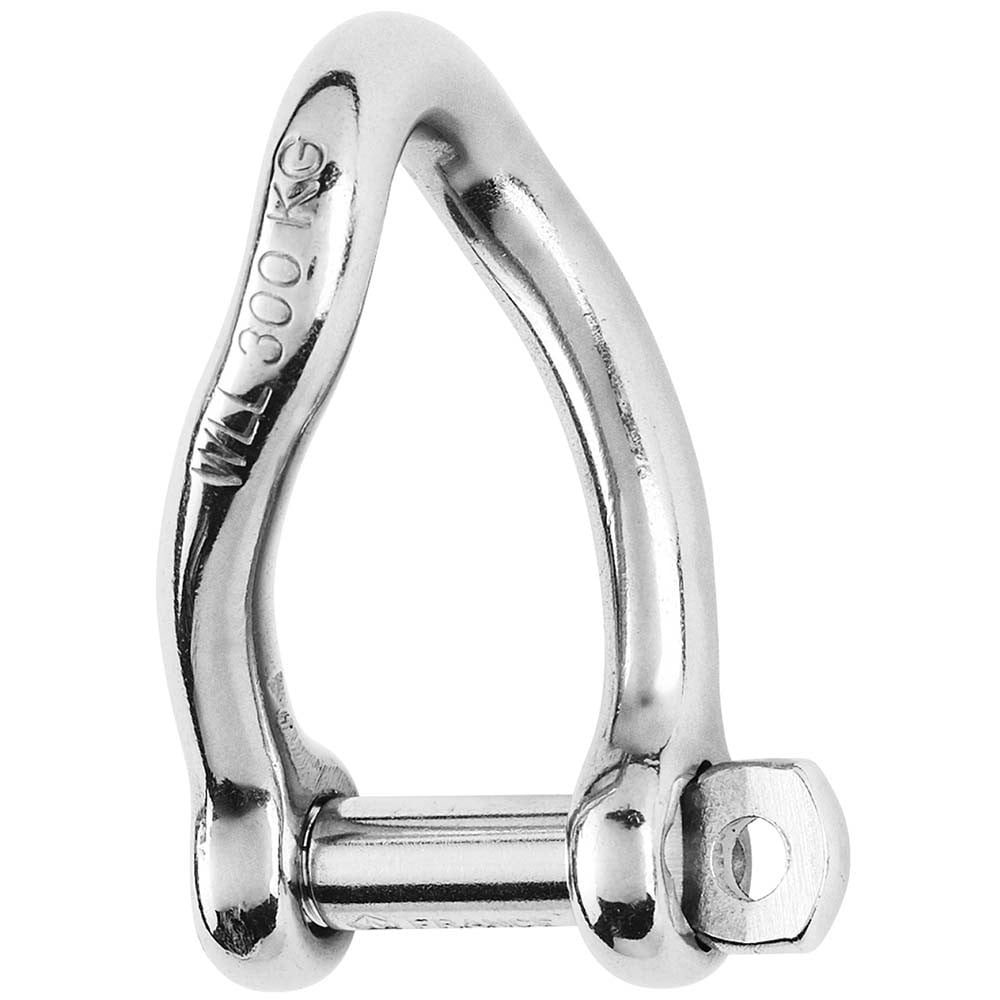

Self-Locking Twisted Shackle - Diameter 6mm - 1/4"

Features:

• Self-locking twisted shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Perfect for application where a  90° angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1320
• Breaking load (lb) 3300
• Weight (lb) 0.06

Dimensions (see 2nd page):

• A (inch) 1-3/16"
• B (inch) 15/32"
• C (inch) 15/64"
• D (inch) 15/32"
• D diameter (inch) 15/64"
• E (inch) 13/64"
• F (inch) 1-49/64"

Manufacturer : Wichard Marine
Manufacturer Part No : 01223
UPC : 768536012231
