Sons Of Liberty Gun Works M89H15 Heavy Drive Lock M-LOK Handguard - 15"$391.66
Loading...
Loading...
Loading...
Availability: In Stock

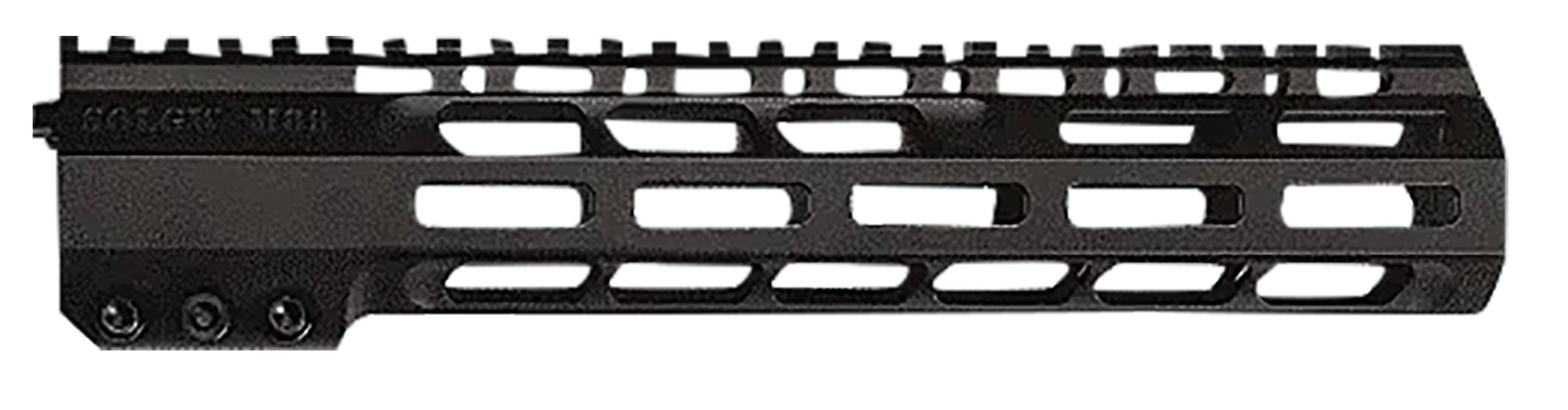

The Sons of Liberty Gun Works M89H13 Heavy Drive Lock M-LOK 13" handguard pairs a patent-pending clamping system with a longer profile designed for builders who want serious real estate around the gas block and maximum rigidity on their AR platform rifle. The Drive Lock mechanism uses three independent wedges that engage angular grooves in SOLGW's proprietary barrel nut, clamping the rail with precise force while simultaneously driving the handguard rearward toward the upper receiver—a geometry that tightens and stiffens the whole assembly. The slightly larger interior diameter means easier gas block clearance and longer thermal management compared to SOLGW's M76 profile, a practical advantage if you're running a short-stroke piston or suppressed setup.
Built from 6061 aluminum and finished in mil-spec hard anodized coating (MIL-A-8625F, Type III, Class 2) with a NiAc seal, the M89H13 comes anodized to match SOLGW receivers. The 13-inch length weighs 16.6 oz and features M-LOK mounting slots along the sides for your accessories, plus engraved T-marks for quick reference. This is a complete package: you get the handguard, barrel nut, wrench, and all lock-up components needed for installation—just pair it with a compatible upper receiver and barrel.
The Drive Lock design appeals to precision shooters and serious builders who value rail stability and want the system to handle extended shooting without flex. Whether you're tuning a match rifle, building a piston gun, or just demanding better clamping force than traditional designs, the M89H13 Heavy Drive Lock combines smart engineering with SOLGW's attention to detail.
| Product | M89H13 Heavy Drive Lock Handguard |
| Length | 13" |
| Weight | 16.6 oz |
| Interior Diameter | 1.4" |
| Material | 6061 Aluminum |
| Finish | Mil-Spec Hard Anodized (MIL-A-8625F, Type III, Class 2), Non-Reflective, NiAc Seal |
| Mounting | M-LOK |
| What's Included | Handguard, Barrel Nut, Barrel Nut Wrench, Lock-Up Components |
You get the 13" M89H13 handguard, the proprietary barrel nut, a barrel nut wrench for installation, and all lock-up components. Everything needed to mount it to a compatible upper receiver and barrel.
The Drive Lock system uses three independent wedges that fit into angular grooves on the barrel nut. When you tighten the wedges, they clamp the rail with extreme force and also push the handguard rearward toward your upper receiver, eliminating flex and creating a more rigid, integrated assembly than traditional push-to-tighten designs.
The M89H13 is designed to work with the Sons of Liberty Gun Works proprietary barrel nut system. You'll need a compatible upper receiver and barrel nut setup to use this handguard. Contact SOLGW or your dealer to confirm compatibility with your specific build.
The larger 1.4" interior diameter provides more clearance around gas blocks, making it well-suited for short-stroke piston setups. The increased thermal mass also helps manage heat from sustained fire better than smaller-diameter rails.
SKU: 121689338 • Weight: 1.24oz
