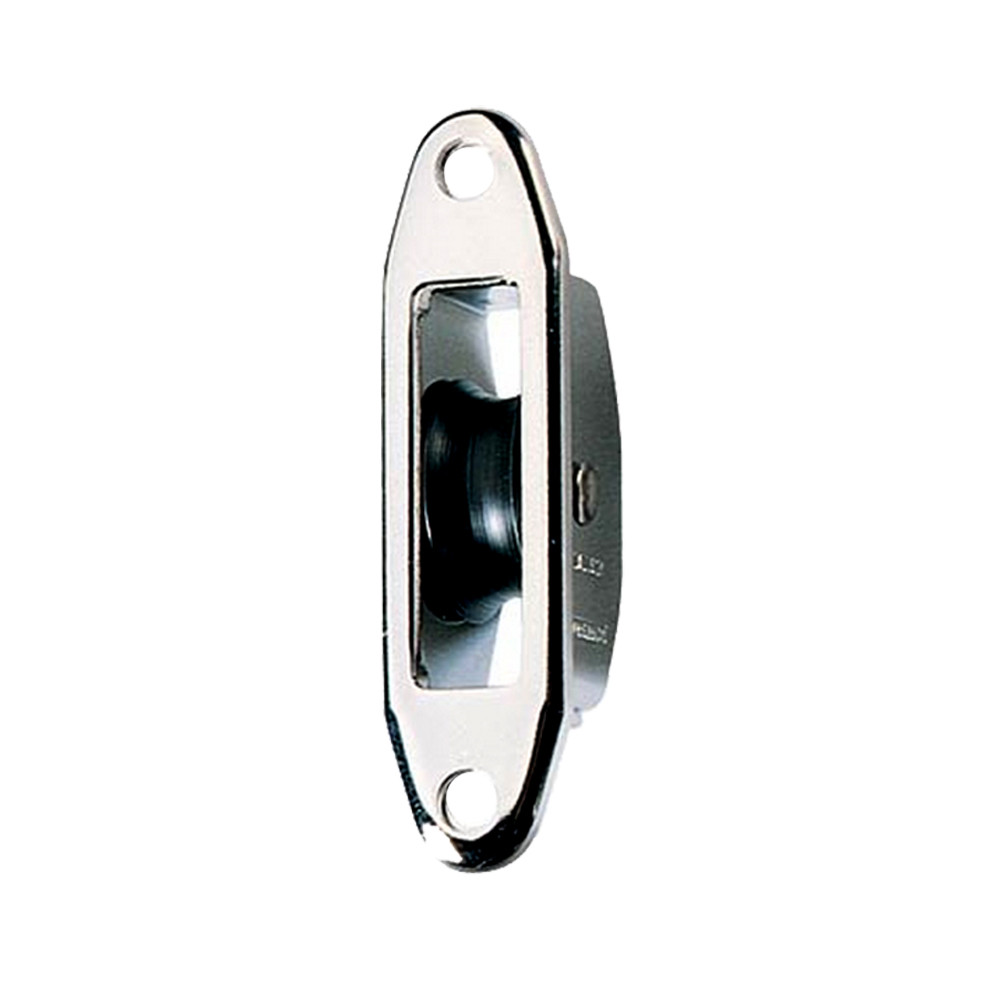

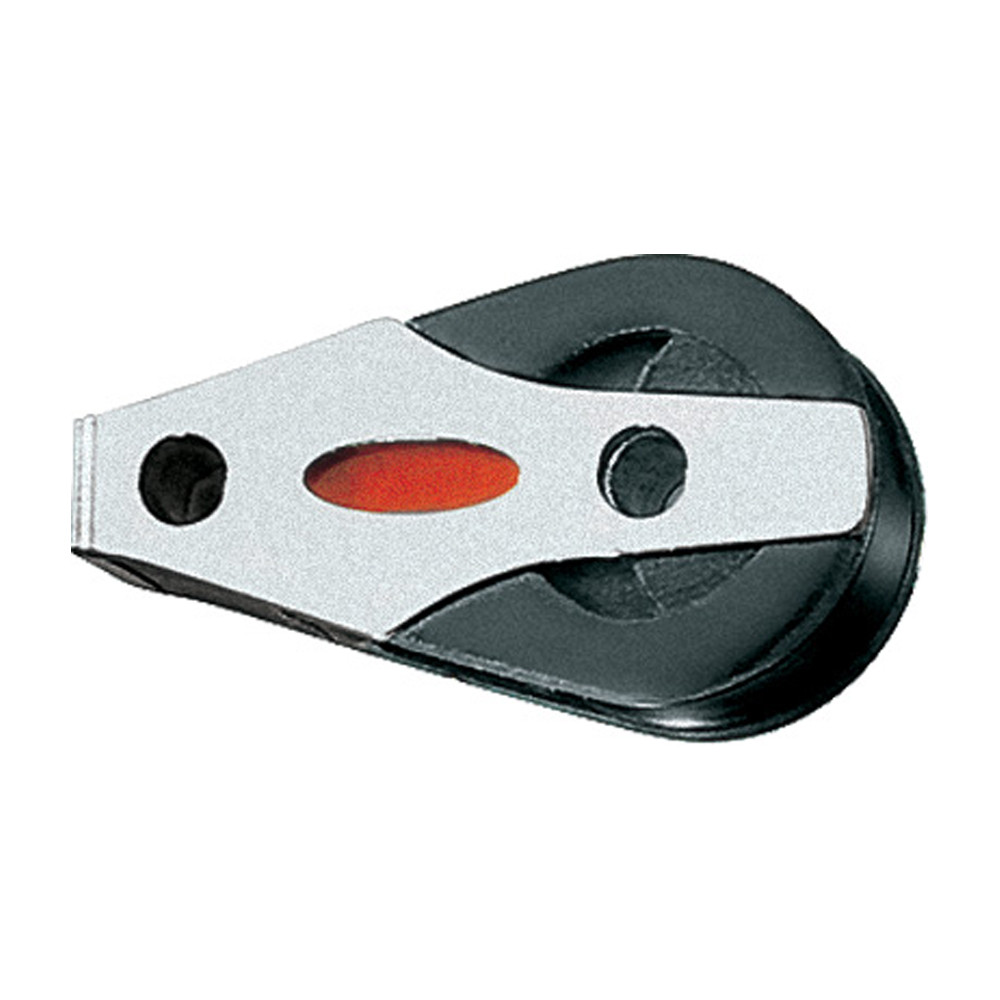

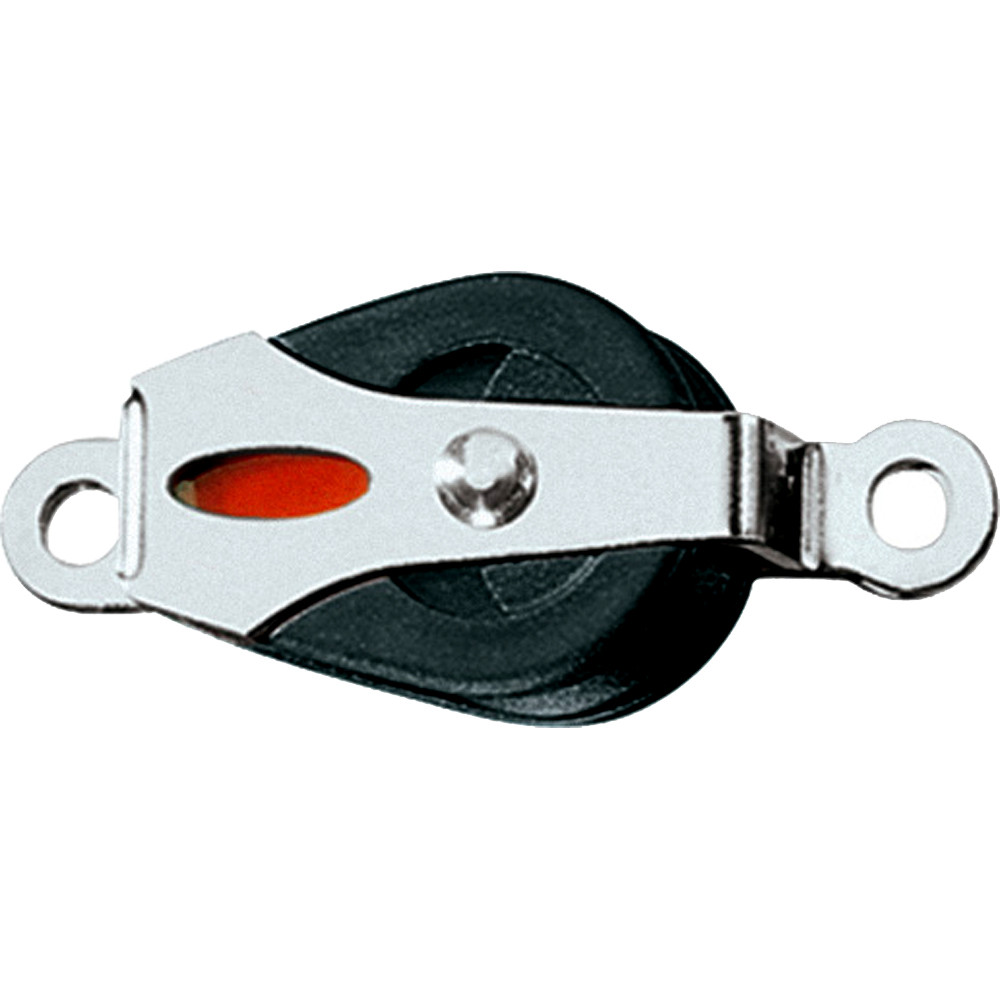

Series 20 Ball Bearing Block - SingleFeatures:- Low friction
- High static and dynamic load capacity
- Lightweight
- Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
Applications:- Dinghy control lines
- Dinghy Vangs
- Cunninghams
- Traveller controls
Materials:- U.V. Stabilized Acetal sheaves
- Stainless steel ball bearings
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fiber reinforced Nylon cheeks
Specifications:Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
Pin Ø: 3mm(1/8")
M.W.L.: 250kg(550lbs)
B. L.: 550kg(1,210lbs)
Weight: 20g(0.7oz)
Manufacturer : Ronstan
Manufacturer Part No : RF20100
UPC : 9316800255504
SKU: 126466906 • Width: 2in • Height: 1in • Depth: 4in • Weight: 0.1oz
