RCBS .44 Magnum Roll Crimp Die Set

The RCBS .44 Magnum roll crimp die set is a three-die reloading solution built for handloaders working with straight-wall cartridges, particularly the .44 Magnum and .44 Special. If you're serious about handloading for your .44 revolver or rifle, a dedicated die set with roll crimp capability gives you the control and consistency that box ammunition can't match. This set delivers the precision fit and secure crimp that magnum revolver rounds demand.

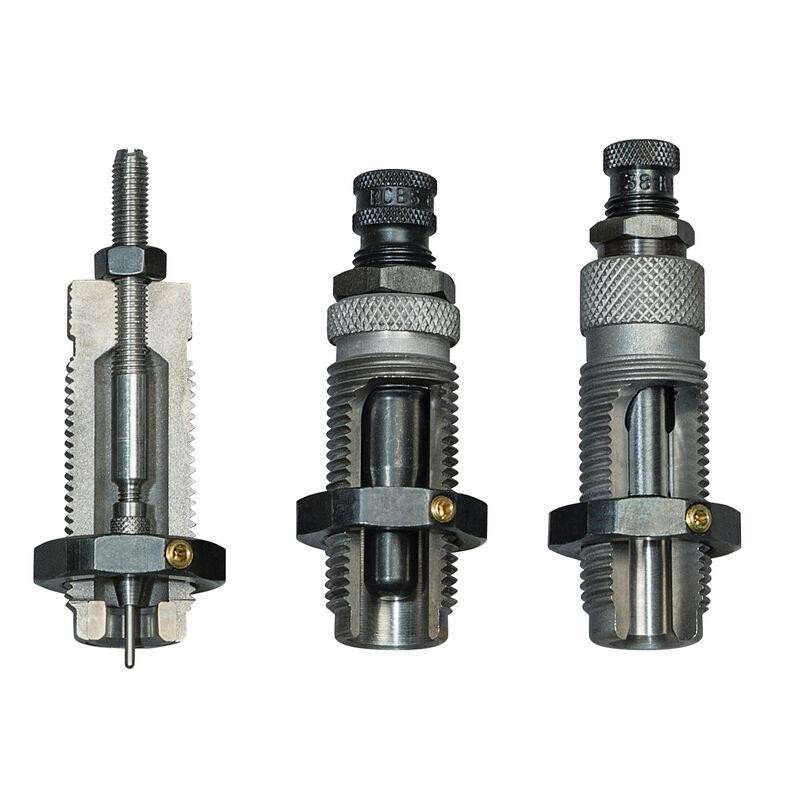

The three-die system divides the work logically: the sizer die handles case sizing and de-priming in one step (you'll need to apply case lube before sizing), the expander die flares and opens the case mouth to accept your bullet, and the seater die both seats the bullet and applies a roll crimp in the same stroke. That final roll crimp seats into the case mouth's cannelure, locking the bullet in place so it won't creep forward under the recoil punishment that magnum loads deliver. For reloaders accustomed to pistol or rifle dies, the separate expander die might feel like an extra step—but it's the standard for straight-wall handgun cartridges and ensures reliable bullet feeding and seating.

RCBS dies are known for consistent machining and straightforward design. This set works with any standard single-stage or turret press that accepts standard die threads. As with all reloading dies, your results depend on proper setup, consistent technique, and keeping your cases and dies clean and lubricated where needed.

Key Features

• Three-die set designed specifically for .44 Magnum and .44 Special straight-wall cartridges
• Roll crimp seating ensures secure bullet retention in magnum loads
• Sizer die with de-priming pin for one-step case preparation
• Separate expander die for reliable bullet feeding and mouth flare
• Compatible with standard single-stage and turret presses

Specifications

Cartridge	.44 Magnum / .44 Special
Die Count	3-piece set
Crimp Type	Roll crimp
Case Type	Straight-wall
Press Compatibility	Standard single-stage and turret presses

Frequently Asked Questions

What's included in this die set, and what do I still need to reload?

The set includes a sizer die with de-priming pin, an expander die, and a seater die with roll crimp. You'll also need a reloading press, brass cases, primers, powder, bullets, a powder scale, and calipers or a comparator to verify loaded rounds. Case lube is essential for the sizing step.

Will this die set work in my single-stage press?

Yes. The RCBS dies use standard threads and are compatible with any single-stage or turret press that accepts standard die sizes, provided your press has the space for three dies.

What's the purpose of the separate expander die?

The expander die opens the case mouth to the correct diameter to accept the bullet and creates the bell or flare needed for smooth bullet seating and reliable feeding in straight-wall revolver and rifle cartridges like the .44 Magnum.

Does the roll crimp die handle both seating and crimping?

Yes. The seater die seats the bullet to your specified length and simultaneously applies a roll crimp that secures the bullet into the case mouth's cannelure, preventing bullet movement under heavy recoil.
