L.E. Wilson197558977
Wilson Expanding Mandrel Only 7mm .283"$17.60
Availability: In Stock
The L.E. Wilson Die with Expanding Mandrel in 7mm (.283") is a specialized reloading die built to standardize neck diameter on rifle brass—a critical step for consistent, accurate handloads. If you're working up precision loads or preparing new brass that may have been dinged during shipping, this die brings your case necks to a uniform dimension slightly under bullet diameter, which means better neck tension and more predictable bullet seating depth from round to round. Made in the USA with stainless-steel construction, it's designed to handle the demands of serious rifle reloaders who refuse to compromise on consistency.
The design includes a helpful cut-out window so you can see the case alignment and verify your depth setting without guesswork. It fits standard 7/8ths-inch reloading presses and ships with one mandrel for the 7mm/.283" dimension; additional mandrels are available separately if you want to use this die body for other calibers. The included L.E. Wilson lock nut is precision-manufactured to match the die's quality and hold your settings tight.
Whether you're loading for a precision rifle, competition rounds, or just want repeatability in your handloads, this expanding mandrel die removes a major source of variance in the reloading process. It's the kind of tool that separates dialed-in loads from merely adequate ones.
| Caliber | 7mm (.283") |
| Die Type | Expanding Mandrel Die |
| Press Compatibility | Standard 7/8ths-inch reloading press |
| Material | Stainless steel |
| What's Included | Die body, one mandrel, L.E. Wilson lock nut |
| Lock Nut Dimensions | 0.225" inside to outside edge; 0.270" height; 1.250" OD width |
| Country of Origin | USA |
Yes, if your press uses a standard 7/8ths-inch die thread. This is the most common reloading press standard in the US, used by RCBS, Hornady, Lyman, Lee, and most other single-stage and turret press brands.

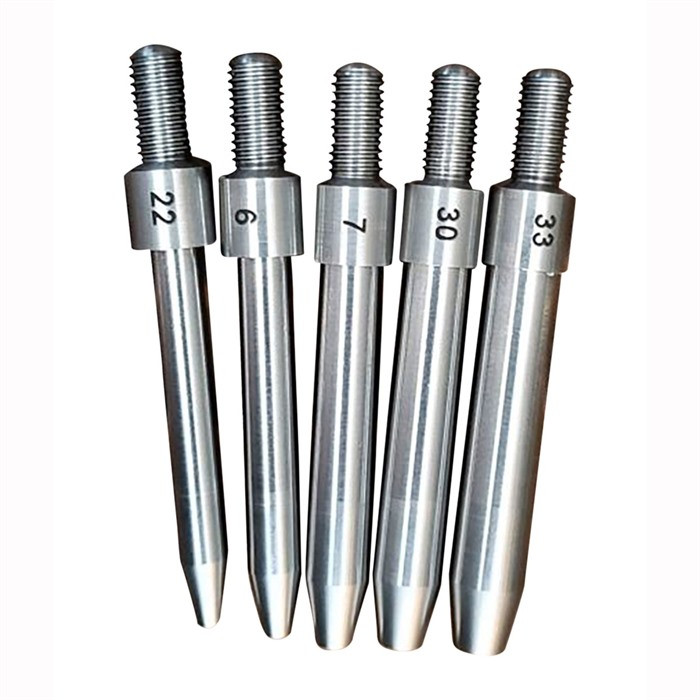

Yes. The mandrel is interchangeable, so you can purchase additional mandrels in different calibers and use the same die body. Additional mandrels are sold separately by L.E. Wilson.
It expands the inside diameter of your rifle brass case neck to a uniform size—slightly smaller than the bullet diameter. This creates consistent neck tension, which means your bullets seat with the same amount of resistance every time, leading to better accuracy and more predictable velocities.
Absolutely. New brass, especially bulk-shipped cases, can arrive with dents, dings, or inconsistent neck dimensions from the manufacturing process. Running new brass through an expanding mandrel die before loading normalizes the necks and ensures your first firing is as consistent as your second and third.
SKU: 167522844 • Width: 1.75in • Height: 1.75in • Depth: 5.75in • Weight: 0.5oz
