Availability: In Stock

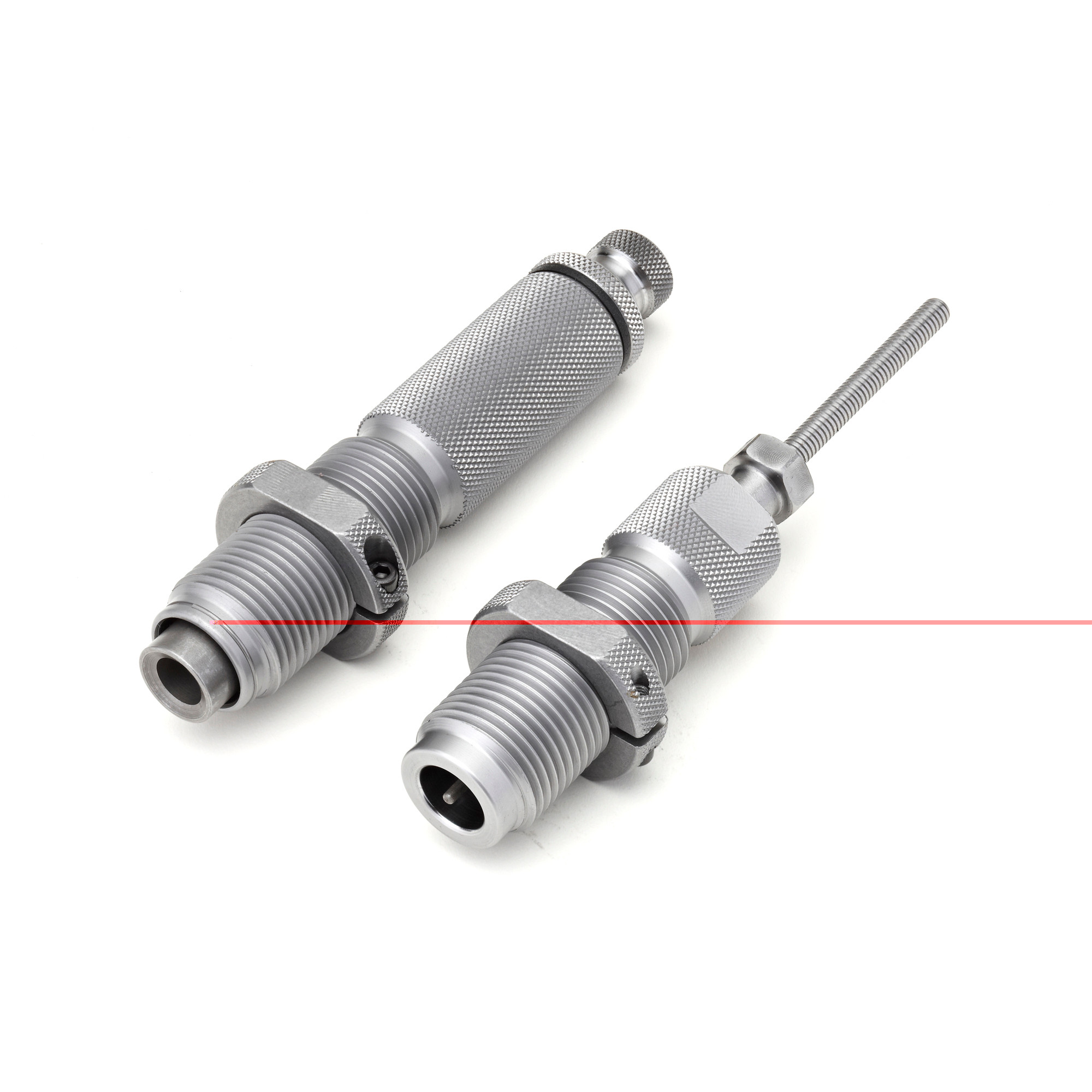

The Hornady Custom Grade Series I 2-Die Set for 30-30 Win gives you the core reloading dies you need to produce consistent, accurate ammunition for your lever-action rifle. This two-die set pairs a full-length sizing die with a bullet seater die, so you can resize fired cases to factory specifications and seat bullets to exact depths—the two operations that anchor precision handloading for any bottleneck cartridge. Whether you're working up loads for hunting or fine-tuning ammunition for a scoped 30-30, these dies are built to deliver the control and reliability that separates quality reloads from mediocre ones.
The sizing die features Hornady's Zip Spindle design, which locks positively to the press to eliminate any slippage during the resize stroke. Fine threads on both spindle and collet let you dial in exact adjustments for neck tension and sizing depth. Inside, the die body is precision-machined and polished smooth, reducing friction and case sticking so your brass lasts longer and chambers cleanly. The sizing die also includes an elliptical expander—Hornady's superior alternative to ball expanders—that sizes necks smoothly and keeps case neck stretch minimal, especially important if you plan to reload the same brass repeatedly.
The seater die houses Hornady's in-line bullet seating system, which aligns the bullet and case neck before the bullet ever touches the case mouth. A floating bullet alignment sleeve, floating steel seating stem, and built-in crimper work together to hold everything true as you lower the die, resulting in straighter seating and tighter runout. The crimper is integral to the die, so you can crimp your bullets in the same stroke without a separate die or press station. A retainer ring locks the components in place and can be removed in seconds for cleaning and inspection.
Both dies feature Hornady's Sure-Loc lock rings—solid rings that clamp around the entire die body under even pressure, held by a locking screw that never touches the threads. This design keeps your die height rock-solid once you've dialed it in. The set ships in a compartmentalized storage box clearly labeled for dies, bushings, and shell holders, so everything stays organized on the shelf or in the press room.
| Product | Hornady Custom Grade Series I 2-Die Set for 30-30 Win |
| Cartridge | 30-30 Winchester |
| Die Count | 2 dies (sizing and seater) |
| Sizing Die Type | Full-length with Zip Spindle |
| Expander Type | Elliptical expander |
| Seating System | In-line system with floating alignment sleeve and seating stem |
| Crimper | Built-in crimper |
| Warranty | Lifetime (defects from normal use) |
| Part Number | 546342 |
This set includes a full-length sizing die and a bullet seater die. The sizing die has a Zip Spindle for secure locking and an elliptical expander, and the seater die features Hornady's in-line alignment system with a built-in crimper.
The seater die includes a built-in crimper, so you can crimp bullets in the same stroke without purchasing or using a separate crimping die. This saves you a press station if you're running a multi-station reloading press.
Yes, these are standard dies and will work with any reloading press that accepts standard die threads. You'll need a press, shell holder for the 30-30 Win, and appropriate reloading components, but the dies themselves are compatible with single-stage, turret, and progressive presses.
Hornady's elliptical expander sizes the case neck more smoothly and with less friction than a traditional ball expander. It also reduces case neck stretch, which is especially valuable if you plan to reload brass multiple times, helping extend the life of your cases.
SKU: 115684921 • Width: 4.9in • Height: 1.9in • Depth: 7.3in • Weight: 1.38oz
