$120.00
Loading...
Loading...
Loading...
Availability: In Stock

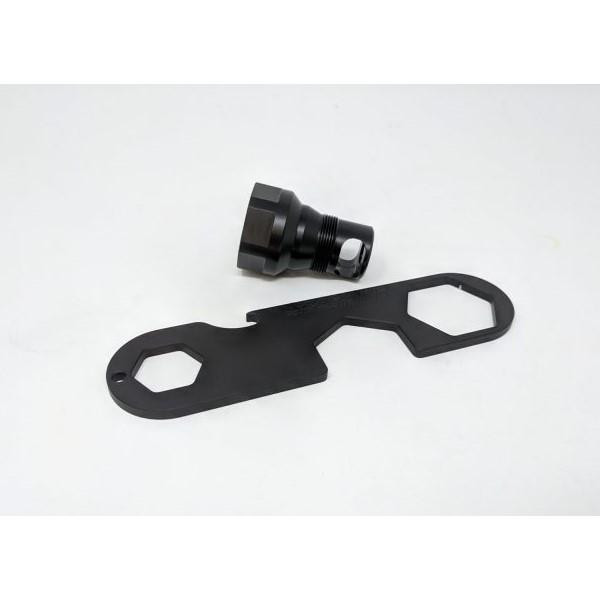

The Area 419 TBAC CB Sidewinder suppressor mount adapter with wrench is a precision quick-disconnect solution designed to pair TBAC CB and Ultra series suppressors with Hellfire Universal Adapter systems. This Generation 2 mount torques directly into your suppressor, converting it to a left-hand threaded direct-attach system that eliminates the need for a separate muzzle brake collar. If you're running a modern suppressor host and want the flexibility to quickly swap between fixed and direct-thread configurations, this adapter bridges that gap with minimal added length and maximum reliability.
Built from aerospace-grade 17-4PH stainless steel and finished with black nitride, the mount is engineered to resist corrosion and galling under repeated use. The compact design keeps overall suppressor length in check, and the included Hellfire wrench gives you the tool you need to properly torque the mount into your can. Area 419 recommends applying blue Loctite to the external threads as a semi-permanent bond—this keeps the mount seated in your suppressor while allowing future removal if needed. The opposing left-hand threading between mount and adapter makes it mechanically impossible to cross-thread or lock them together, so even if something feels off during installation, a quick reverse turn separates them cleanly.
Compatibility is limited to TBAC Ultra 5, 7, and 9 suppressors and TBAC CB series cans in 6.5 and 30 caliber. If you own one of these suppressors and want integration with Hellfire systems without permanent modification, this mount delivers. One care note: avoid citric acid cleaners or CLR on the black nitride finish—these products will discolor the coating and void the lifetime warranty.
| Material | Aerospace-grade 17-4PH stainless steel, black nitrided |
| Compatible Suppressors | TBAC Ultra 5, 7, 9 (6.5 and 30 caliber) and TBAC CB series |
| Adapter System | Hellfire Universal Adapter (left-hand threaded) |
| Included Accessories | Hellfire wrench |
| Warranty | Lifetime (void if cleaned with citric acid or CLR) |
The Area 419 TBAC CB Sidewinder adapter works with TBAC Ultra 5, 7, and 9 suppressors and TBAC CB series cans, all in 6.5 and 30 caliber. It is not compatible with other suppressor brands or TBAC models outside this lineup.
Generation 2 mounts like this one eliminate the collar design used in the original version. Instead, the mount torques directly into the suppressor body itself, allowing the suppressor to thread onto the Hellfire Universal Adapter as a direct-thread system. This keeps the overall package more compact and simplifies the attachment process.
The package includes the suppressor mount adapter itself and a Hellfire wrench for proper installation and torque.
Yes. Area 419 recommends applying blue Loctite to the external threads as a semi-permanent bond, which allows you to remove the mount in the future if needed. The left-hand threading of the system prevents cross-threading, so removal is straightforward—simply turn the mount out of the suppressor body.
SKU: 194195017 • Width: 3.5in • Height: 1.75in • Depth: 6in • Weight: 0.373oz
